Left Front of Engine Components (LCV)

Left Front of Engine Components (LCV)

Items
1. B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (LTG)
2. E41 Engine Coolant Thermostat Heater (LCV) E41 Engine Coolant Thermostat Heater
3. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
4. G1 A/C Compressor
5. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch

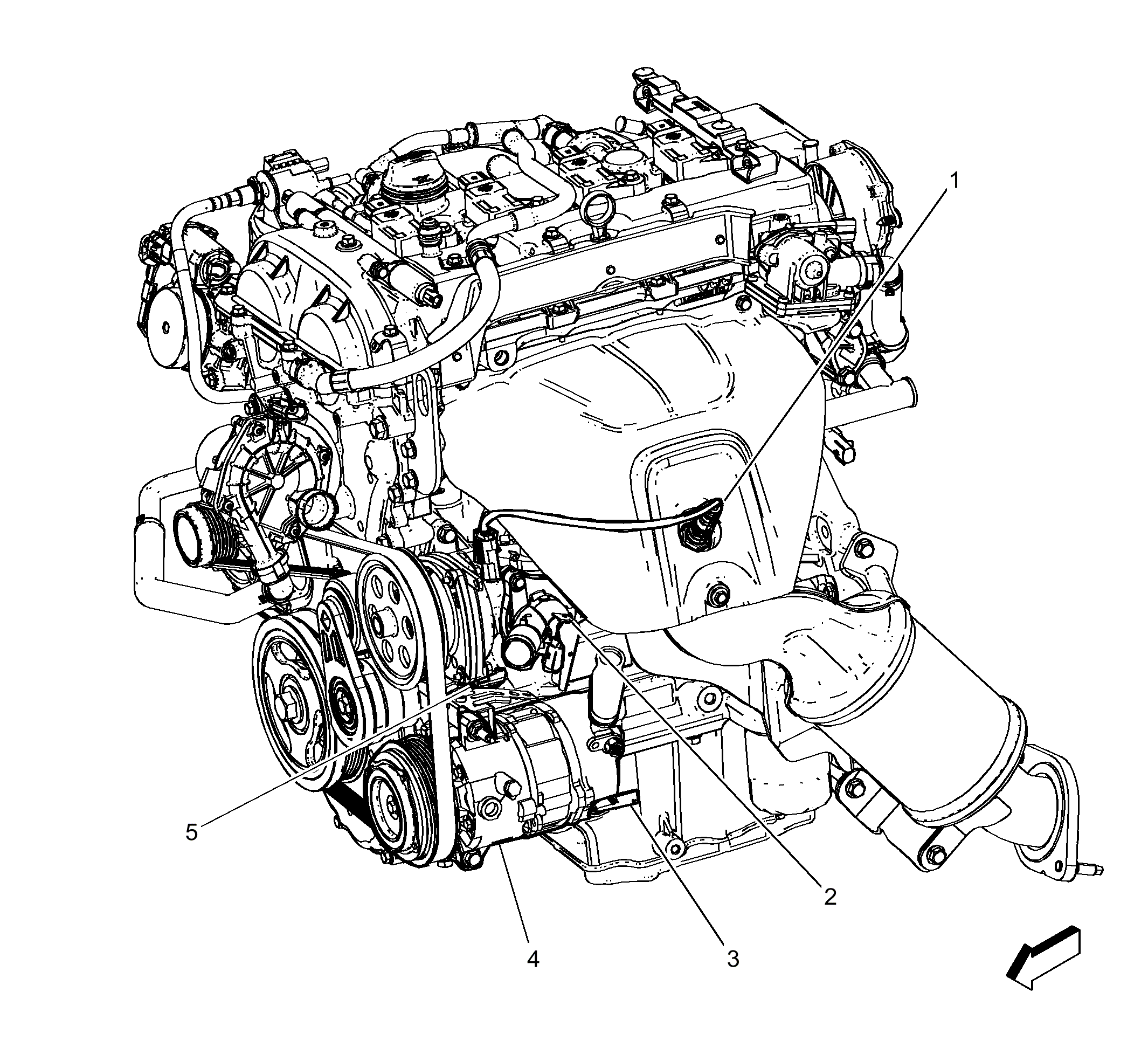

Fig 1: Left Front of Engine Components (LCV)
GM4055897Courtesy of GENERAL MOTORS COMPANY
