Short Range Radar Sensor Replacement (Front)

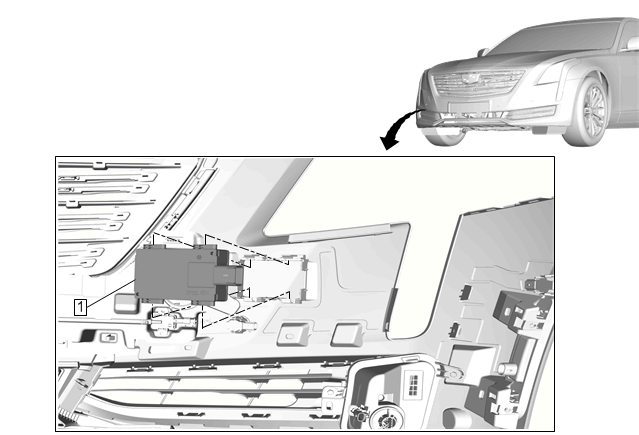

Fig 1: Short Range Radar Sensor (Front)
GM4256275Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement (Without UV3)Front Bumper Fascia Replacement (With UV3)
1 Short Range Radar Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Release the tab retainer tabs and remove.
  3. Control Module References for programming and setup information, if required.
