Park Assist - Module Power, Ground and Serial Data

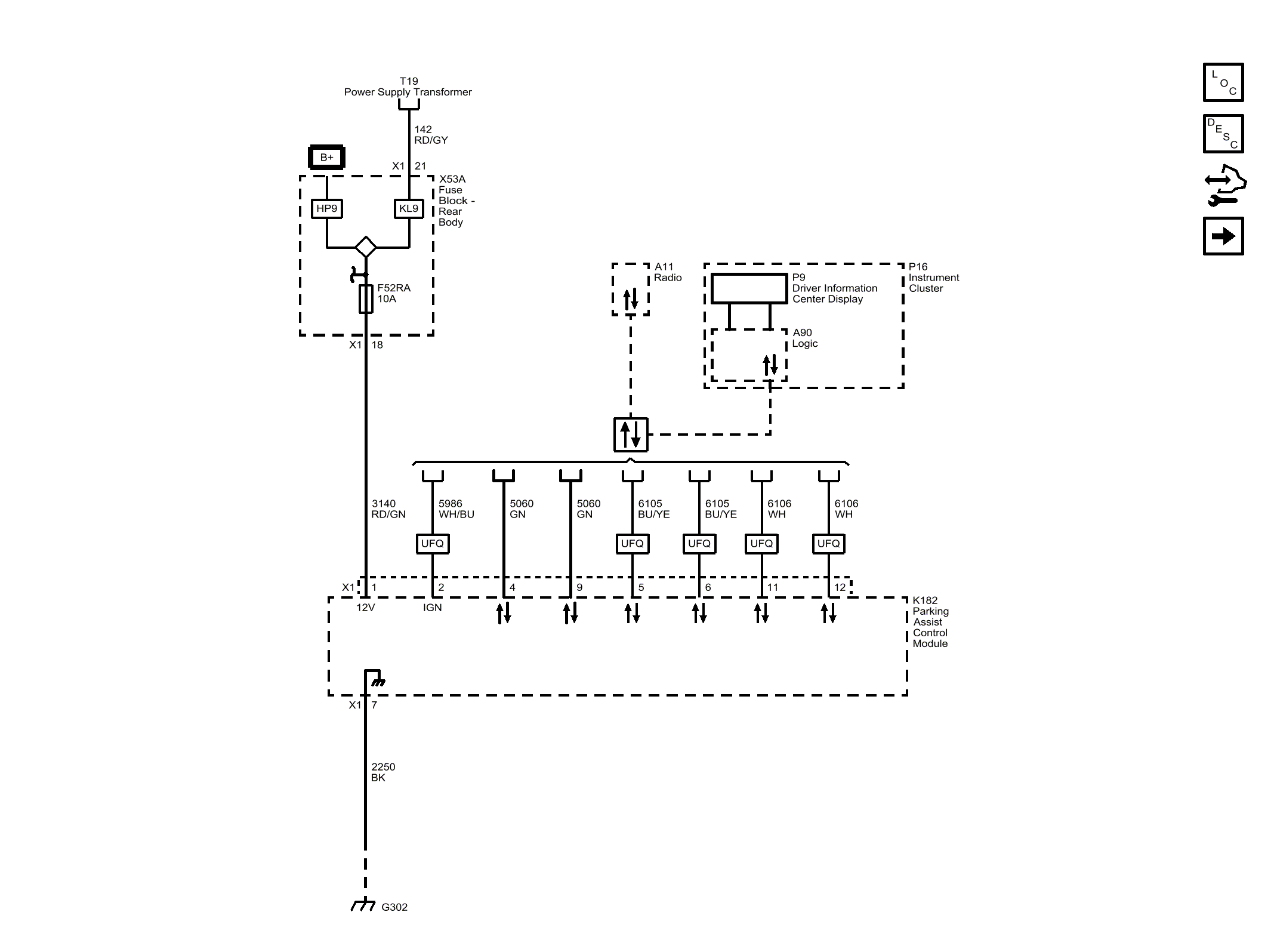

Fig 1: Park Assist - Module Power, Ground and Serial Data
GM4489893Courtesy of GENERAL MOTORS COMPANY
