Short Range Radar Sensor Replacement (Rear)

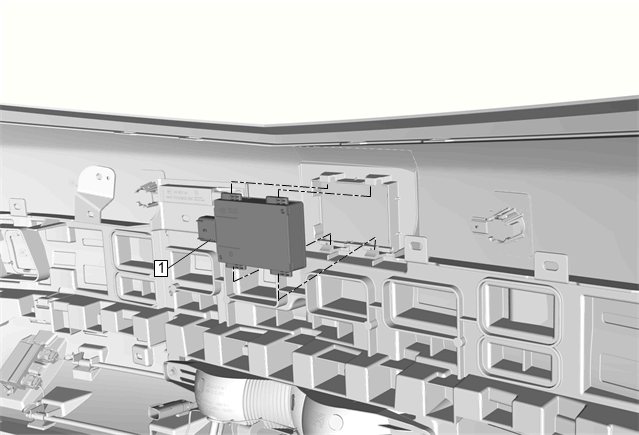

Fig 1: Short Range Radar Sensor (Rear)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement
1	Short Range Radar Sensor Procedure Disconnect the electrical connector. Release the tab retainer tabs and remove. Control Module References for programming and setup information, if required.

Callout

Component Name

Short Range Radar Sensor

Procedure
