Infotainment Control Switch Replacement

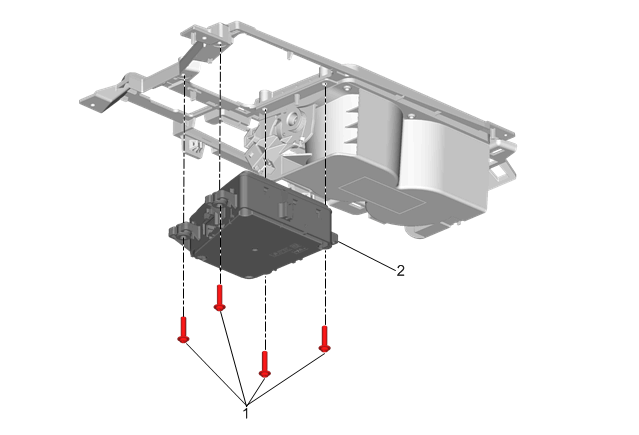

Fig 1: Infotainment Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Floor Console Applique Replacement
1	Front Floor Console Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Infotainment Control Switch
