Radio Bracket Replacement

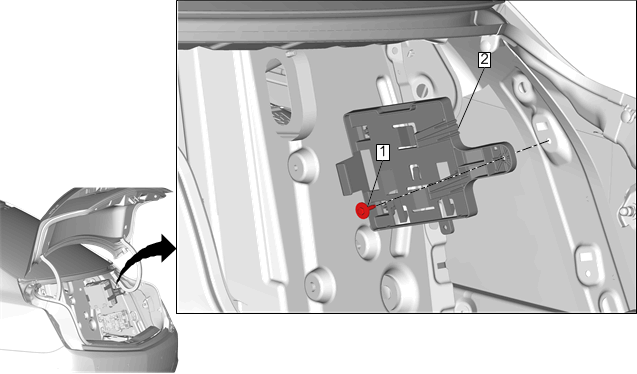

Fig 1: Radio Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Radio Replacement
1	Radio Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Radio Bracket Procedure Transfer components as necessary.
