Video Player Replacement

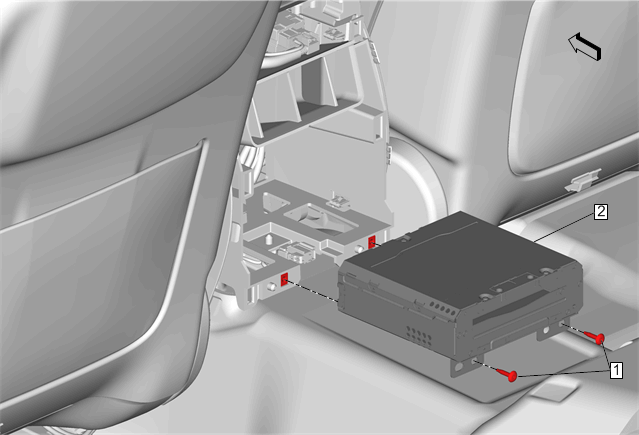

Fig 1: Video Player

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Panel Replacement - Left Side
1	Front Floor Console Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Video Player Procedure Use a 90 degree pick to release the connector position assurances and connectors.
