Communication Interface Module Bracket Replacement

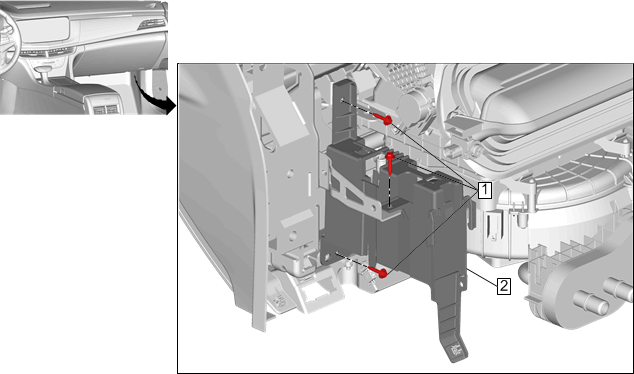

Fig 1: Communication Interface Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Communication Interface Module Replacement
1	Communication Interface Module Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Communication Interface Module Bracket
