Peripheral Human Machine Interface Control Module Replacement

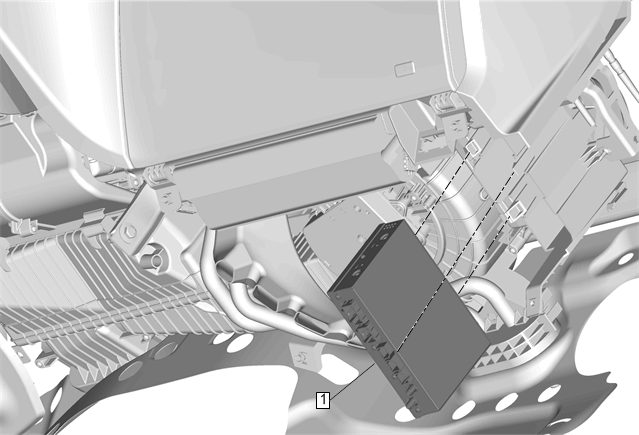

Fig 1: Peripheral Human Machine Interface Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
1	Peripheral Human Machine Interface Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs. Control Module References for programming and set up information, if required.

Callout

Component Name

Peripheral Human Machine Interface Control Module

Procedure
