Radio Front Speaker Replacement

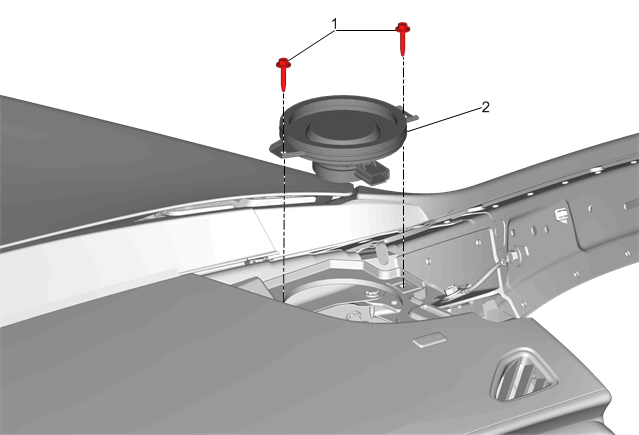

Fig 1: Radio Front Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Radio Front Speaker Grille Replacement
1	Radio Front Speaker Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Radio Front Speaker Procedure  Disconnect the electrical connector.
