Cellular System, Entertainment System, And Navigation System - Schematic Wiring Diagrams
›
Schematic Wiring Diagrams
›
Radio/Navigation System Wiring Schematics
›
Navigation Control Module (CW1)
Navigation Control Module (CW1)

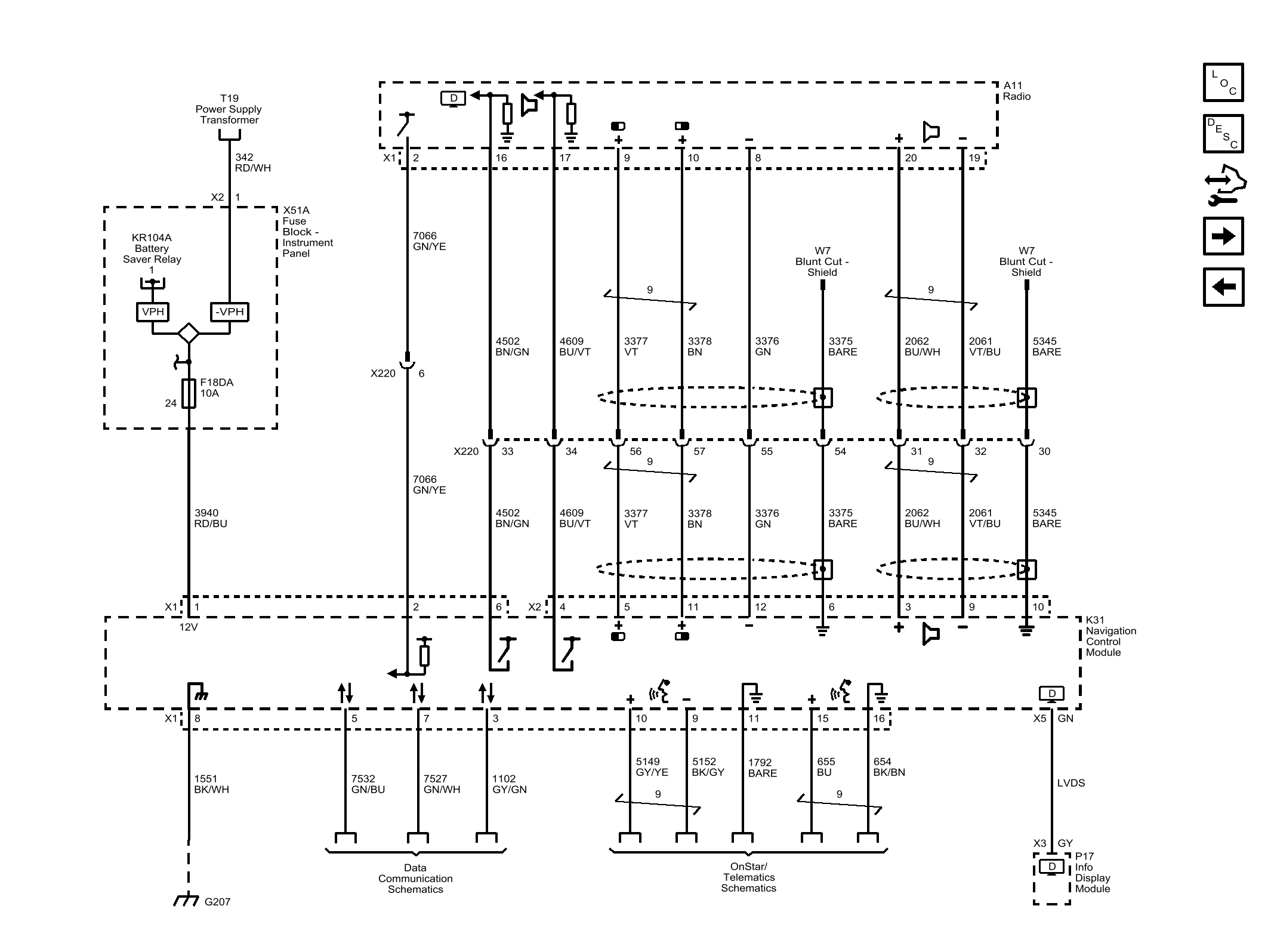

Fig 1: Navigation Control Module (CW1)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
