Windshield Washer Nozzle Replacement

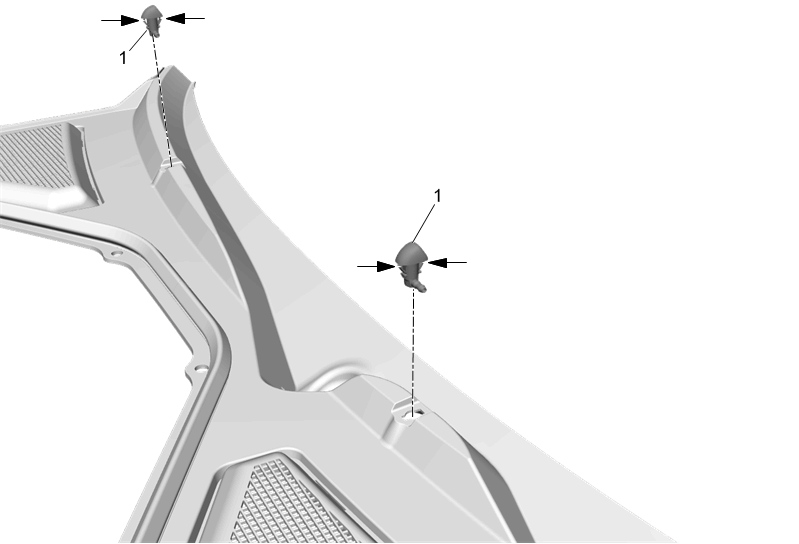

Fig 1: Windshield Washer Nozzle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Air Inlet Grille Panel Replacement
1	Windshield Washer Nozzle Procedure Disconnect the windshield washer nozzle hose at the windshield washer nozzle being serviced. Compress the locking tabs on the windshield washer nozzle. Push the windshield washer nozzle upward to remove from the air inlet grille panel.

Callout

Component Name

Windshield Washer Nozzle

Procedure

Disconnect the windshield washer nozzle hose at the windshield washer nozzle being serviced.
Compress the locking tabs on the windshield washer nozzle.
Push the windshield washer nozzle upward to remove from the air inlet grille panel.
