Windshield Wiper Blade Replacement

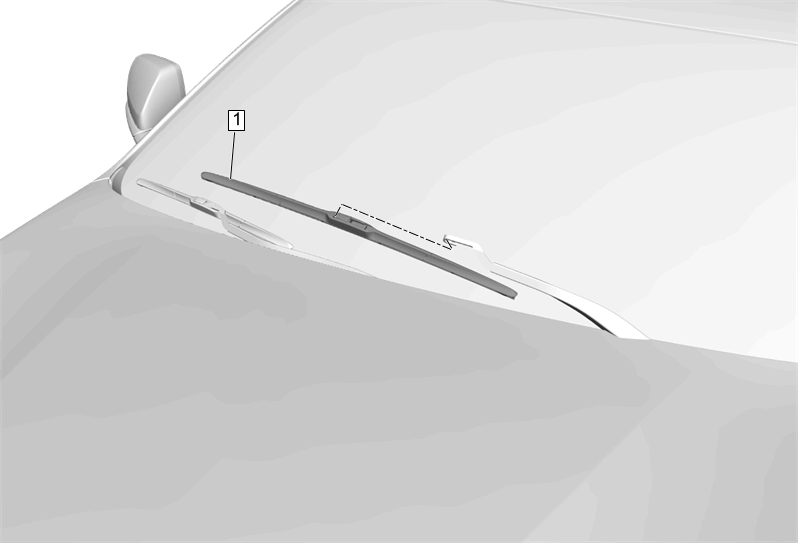

Fig 1: Windshield Wiper Blade
GM4240902Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Windshield Wiper Blade

Procedure

  1. Lift the windshield wiper arm from the windshield.
  2. Disengage the windshield wiper blade lock from the windshield wiper arm.
  3. Release the retention tab securing the windshield wiper blade to the windshield wiper arm.
  4. Pull the windshield wiper blade from the windshield wiper arm.
