Keyless Entry Control Module Replacement

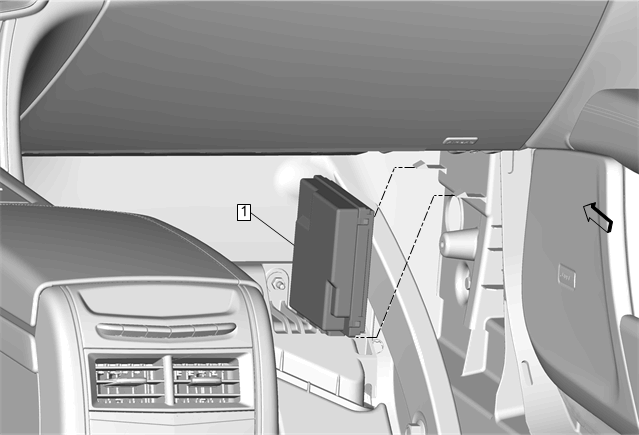

Fig 1: Keyless Entry Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Panel Carpet Replacement - Right Side
1	Keyless Entry Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs. Control Module References for programming and setup information, if required.

Callout

Component Name

Keyless Entry Control Module

Procedure
