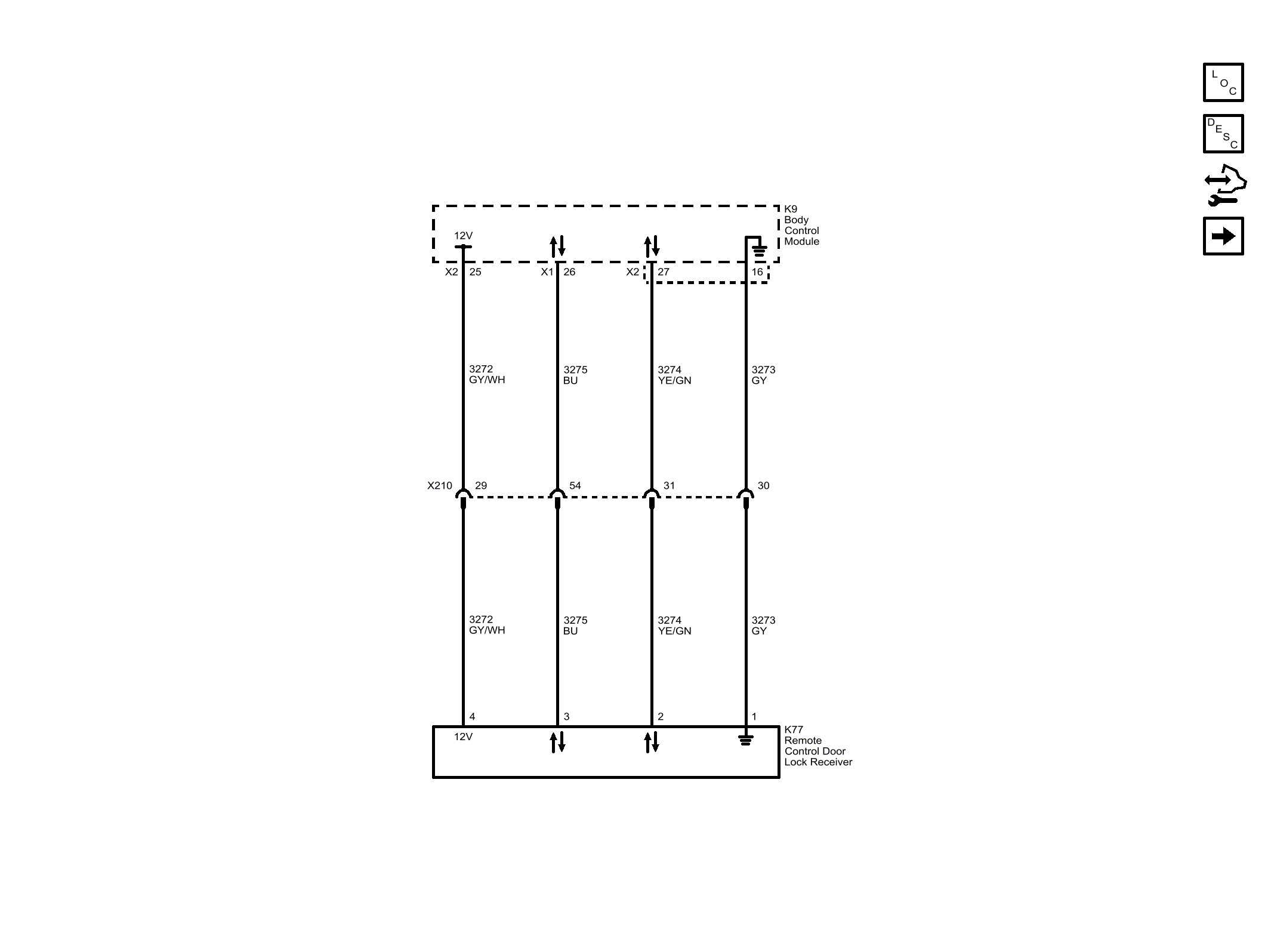

Home › Cadillac › 2017 › CT6 Plug-In › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
