Front Side Door Outside Handle Insert Replacement

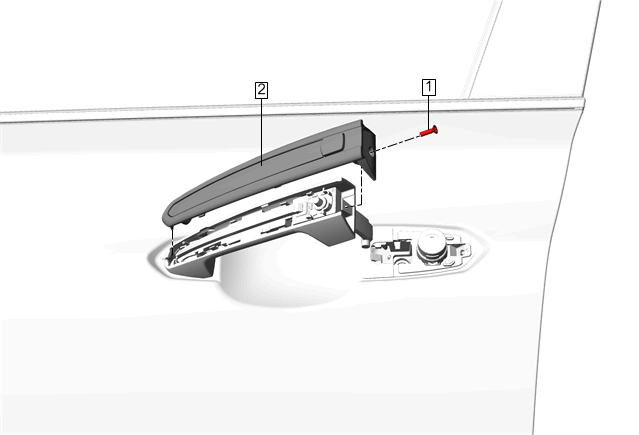

Fig 1: Front Side Door Outside Handle Insert

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Side Door Lock Cylinder Opening Cover Replacement
1	Front Side Door Outside Handle Insert Screw CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Front Side Door Outside Handle Insert NOTE: Ensure the door operates properly before installing the door trim.
