Roof Console Replacement

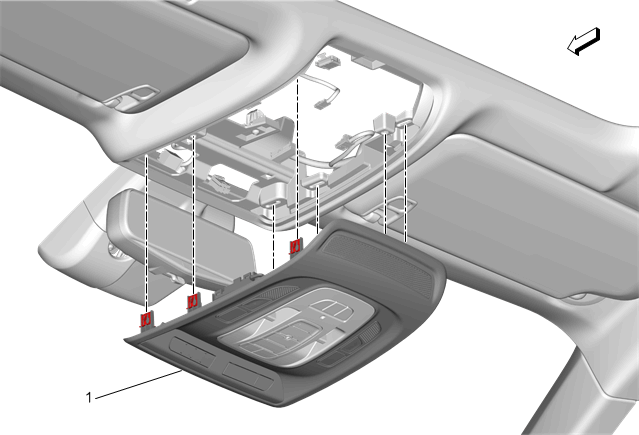

Fig 1: Roof Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Roof Console Procedure Grasp the roof console on both sides and pull down to disengage the clips. Disconnect all electrical connectors. Transfer components as necessary.
