Home › Cadillac › 2017 › CT6 Plug-In › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

Defogger Wiring Schematics: Defogger

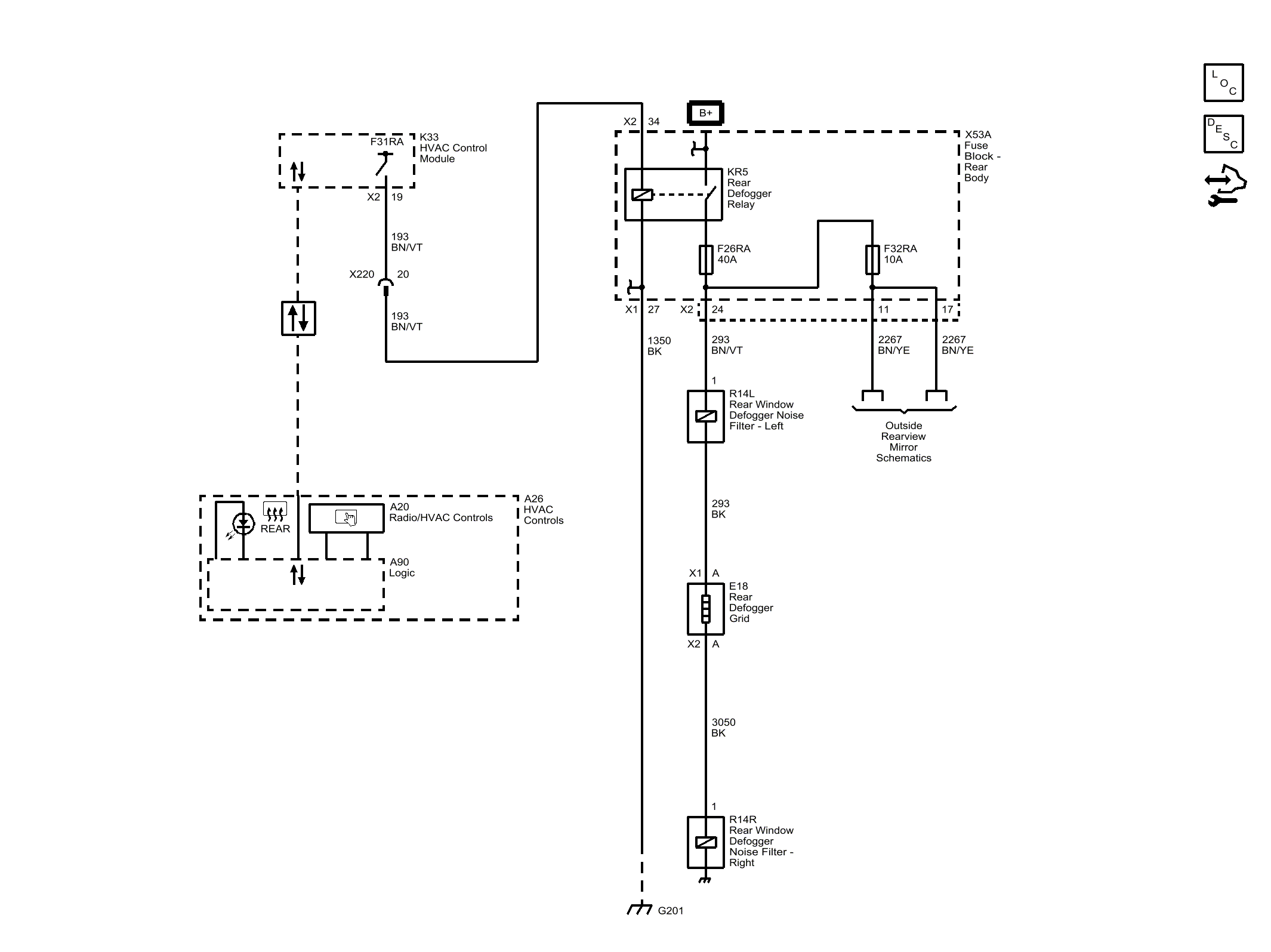

Fig 1: Defogger
GM4489421Courtesy of GENERAL MOTORS COMPANY
