Outside Rearview Mirror Housing Upper Cover Replacement

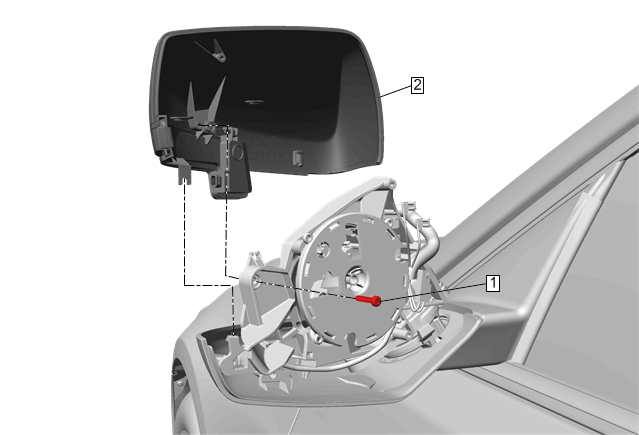

Fig 1: Outside Rearview Mirror Housing Upper Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Outside Rearview Mirror Housing Bezel Replacement
1	Outside Rearview Mirror Upper Housing Cover Bolt CAUTION: Refer to Fastener Caution . Tighten  1.8 N.m (16 lb in)
2	Outside Rearview Mirror Upper Housing Cover Disconnect the electrical connector. Transfer components as necessary.
