Front Seat Adjuster Memory Module Bracket Replacement

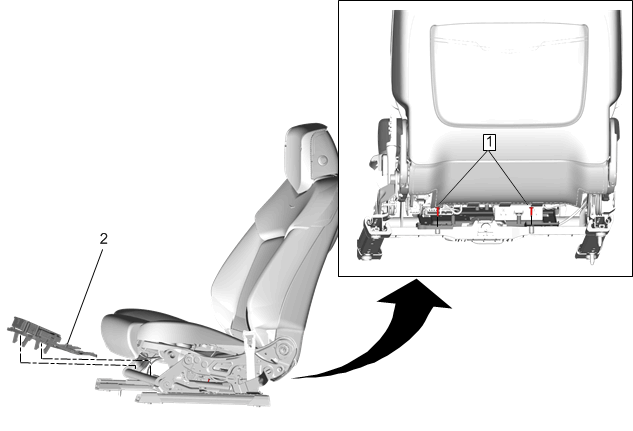

Fig 1: Front Seat Adjuster Memory Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Driver or Passenger Seat Removal and Installation
1	Front Seat Adjuster Memory Module Bracket Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Adjuster Memory Module Bracket Procedure Disconnect all electrical connectors. Release the retaining tabs. Transfer components as necessary.

Callout

Component Name

Front Seat Adjuster Memory Module Bracket Fastener [2x]

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Seat Adjuster Memory Module Bracket

Procedure
