Rear Seat Adjuster Memory Module Replacement

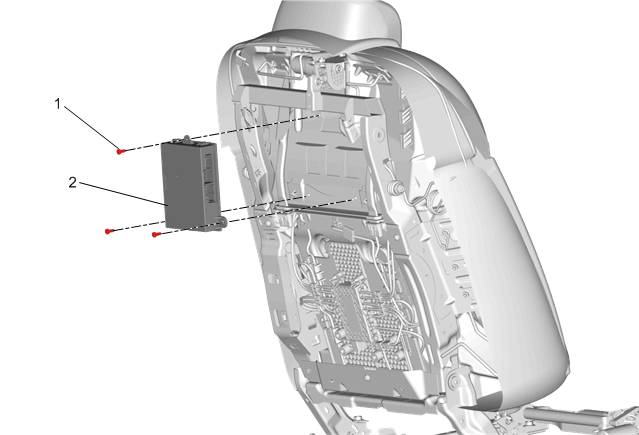

Fig 1: Rear Seat Adjuster Memory Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Seat Removal and Installation
1	Rear Seat Adjuster Memory Module Screw [3x] CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in)
2	Rear Seat Adjuster Memory Module Procedure Disconnect all electrical connectors. Control Module References for programming and setup information, if required.

Callout

Component Name

Rear Seat Adjuster Memory Module Screw [3x]

CAUTION: Refer to Fastener Caution .

Tighten
4.5 N.m (40 lb in)

Rear Seat Adjuster Memory Module

Procedure
