Rear Seat Heater Control Module Replacement

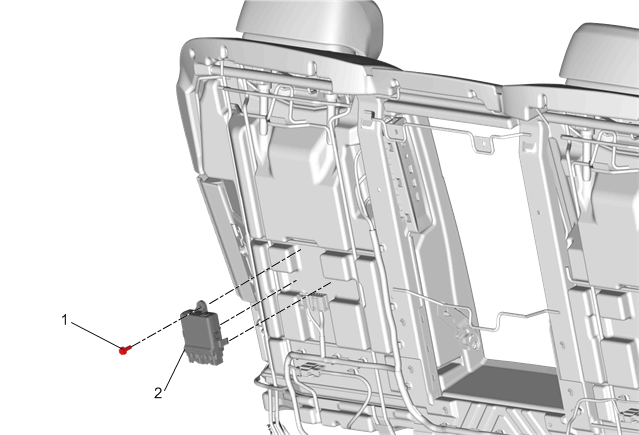

Fig 1: Rear Seat Heater Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Seat Back Cushion Removal and Installation
1	Rear Seat Heater Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Seat Heater Control Module Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Rear Seat Heater Control Module Fastener

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Rear Seat Heater Control Module

Procedure
