Installation Procedure

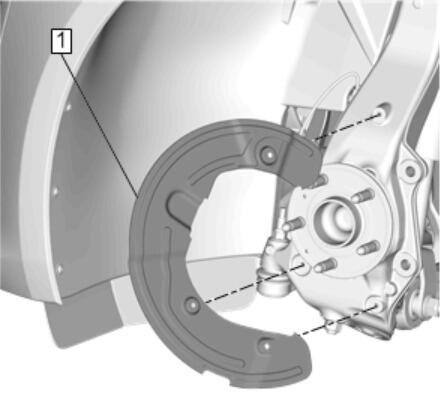

Front Brake Shield (1)» Install

Fig 1: Front Brake Shield
Courtesy of GENERAL MOTORS COMPANY

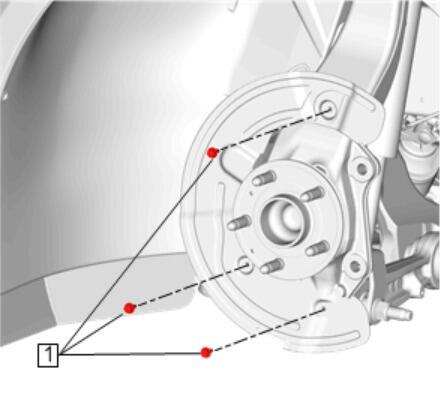

Front Brake Shield Bolt (1)» Install and tighten 9 N.m (80 lb in) [3x]

Fig 2: Front Brake Shield Bolt
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Fastener Caution
Front Brake Rotor Replacement » Install
