Installation Procedure

  1. Brake Pressure Modulator Valve Assembly (1)» Install

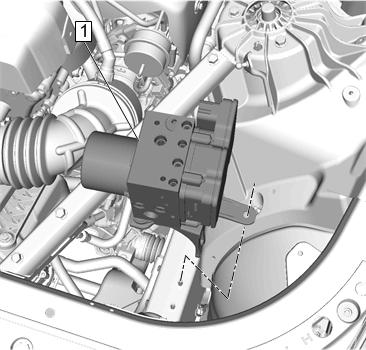

    Fig 1: Brake Pressure Modulator Valve Assembly
    GM4476914Courtesy of GENERAL MOTORS COMPANY
  2. Brake Pressure Modulator Valve Bracket Bolt (1)» Install and tighten 9 N.m (80 lb in)
    Fig 2: Brake Pressure Modulator Valve Bracket Bolt
    GM4245826Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Fastener Caution
  3. Brake Pressure Modulator Valve Bracket Bolt (1)» Install and tighten 9 N.m (80 lb in)
    Fig 3: Brake Pressure Modulator Valve Bracket Bolt
    GM4245825Courtesy of GENERAL MOTORS COMPANY
  4. Brake Pressure Modulator Valve Bracket Nut (1)» Install and tighten 9 N.m (80 lb in)

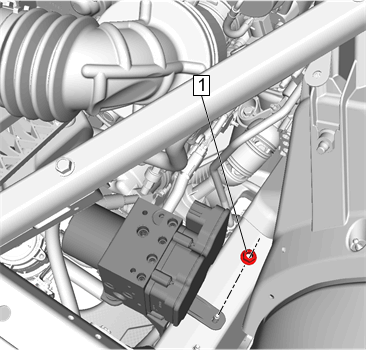

    Fig 4: Brake Pressure Modulator Valve Bracket Nut
    GM4476904Courtesy of GENERAL MOTORS COMPANY
  5. Brake Pipe Fitting (Right Rear) (1)» Install and tighten 19 N.m (14 lb ft)

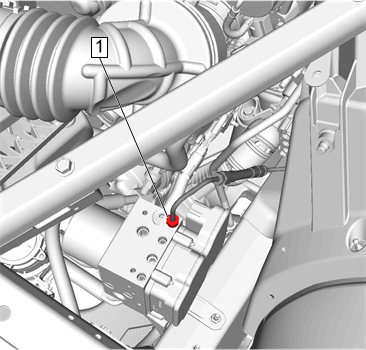

    Fig 5: Brake Pipe Fitting (Right Rear)
    GM4476897Courtesy of GENERAL MOTORS COMPANY
  6. Brake Pipe Fitting (Left Rear) (1)» Install and tighten 19 N.m (14 lb ft)

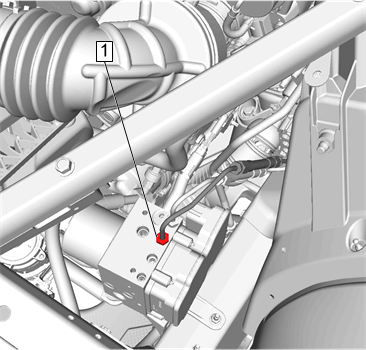

    Fig 6: Brake Pipe Fitting (Left Rear)
    GM4476892Courtesy of GENERAL MOTORS COMPANY
  7. Brake Pipe Fitting (Right Front) (1)» Install and tighten 19 N.m (14 lb ft)

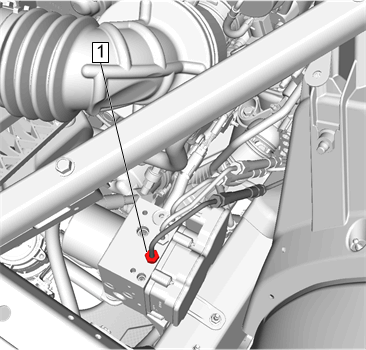

    Fig 7: Brake Pipe Fitting (Right Front)
    GM4476887Courtesy of GENERAL MOTORS COMPANY
  8. Brake Pipe Fitting (Left Front) (1)» Install and tighten 19 N.m (14 lb ft)
    Fig 8: Brake Pipe Fitting (Left Front)
    GM4476881Courtesy of GENERAL MOTORS COMPANY
  9. Brake Pressure Modulator Valve Low Pressure Brake Pipe Fitting (1)» Install and tighten 32 N.m (24 lb ft)

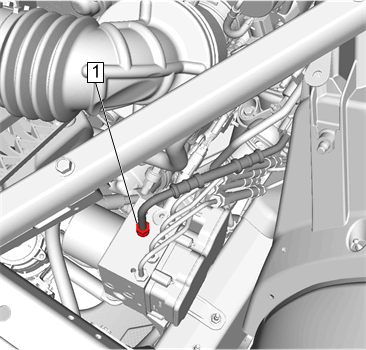

    Fig 9: Brake Pressure Modulator Valve Low Pressure Pipe Fitting
    GM4476876Courtesy of GENERAL MOTORS COMPANY
  10. Brake Pressure Modulator Valve Secondary Brake Pipe Fitting (1)» Install and tighten 32 N.m (24 lb ft)

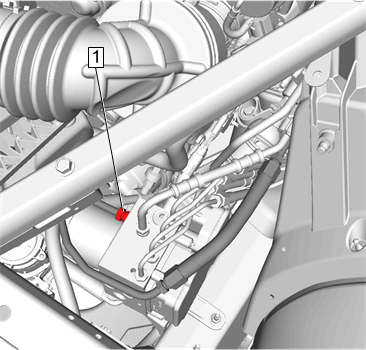

    Fig 10: Brake Pressure Modulator Valve Secondary Brake Pipe Fitting
    GM4476873Courtesy of GENERAL MOTORS COMPANY
  11. Brake Pressure Modulator Valve Primary Brake Pipe Fitting (1)» Install and tighten 32 N.m (24 lb ft)
    Fig 11: Brake Pressure Modulator Valve Primary Brake Pipe Fitting
    GM4476865Courtesy of GENERAL MOTORS COMPANY
  12. Connect the EBCM electrical connector.
  13. Bleed the brake system. Refer to Antilock Brake System Automated Bleed
  14. Engine Wiring Harness Fuse Block Bracket» Install - Engine Wiring Harness Fuse Block Bracket Replacement
  15. Program the EBCM. Refer to Control Module References
  16. Center the steering angle sensor. Refer to Steering Wheel Angle Sensor Centering
