Hybrid Control Electronic Component Views

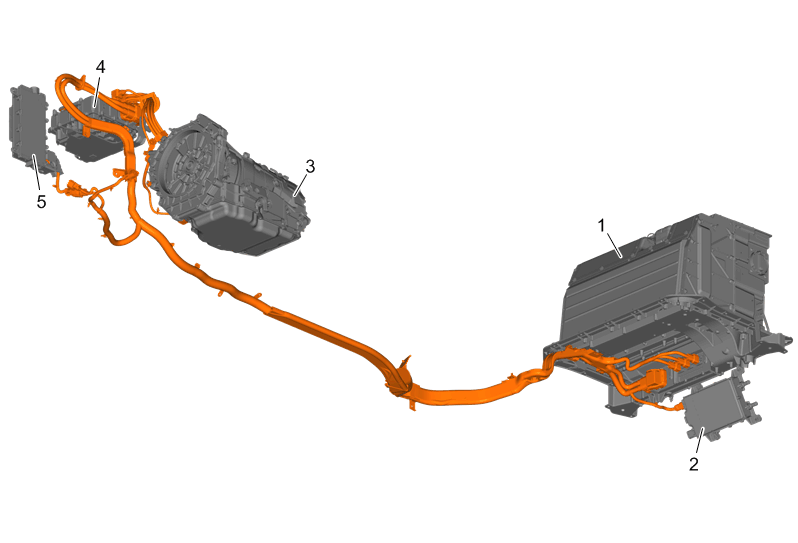

Fig 1: Hybrid Control Electronic Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	High Voltage Battery
2	T18 Battery Charger
3	T12 Automatic Transmission Assembly
4	T6 Power Inverter Module
5	K1 14V Power Module
