Interface Control Module Bracket Replacement

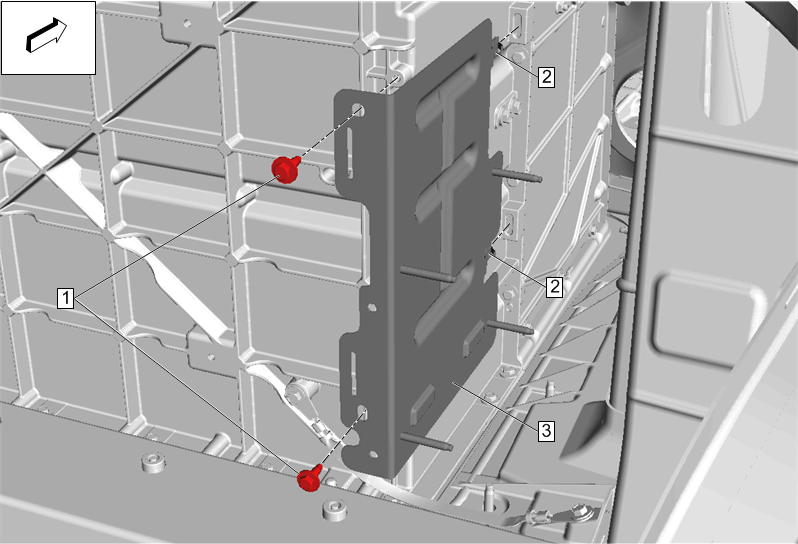

Fig 1: Interface Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Hybrid Powertrain Control Module 2 Replacement
1	Interface Control Module Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Retaining Tab [2x]
3	Interface Control Module Bracket
