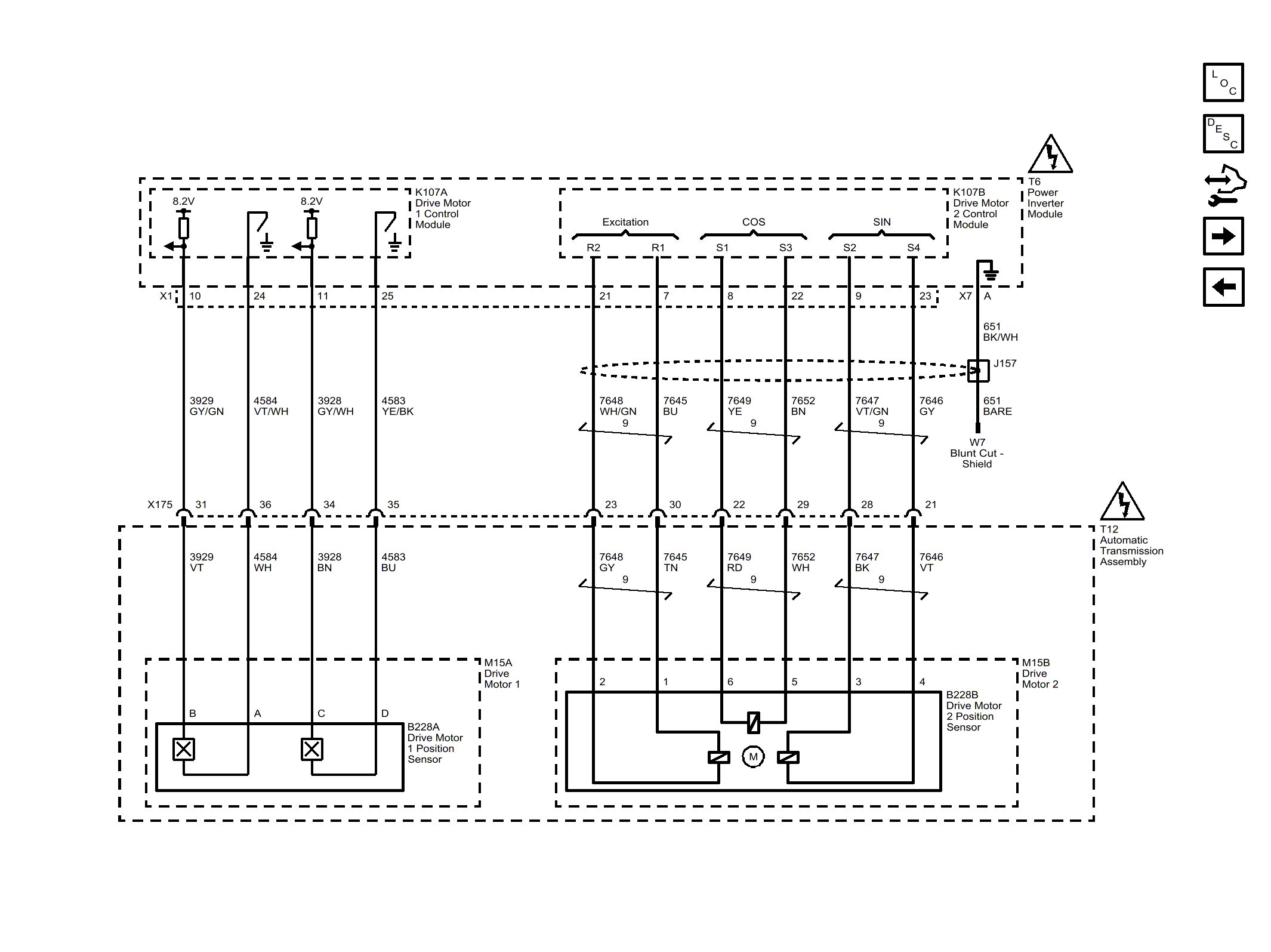

Home › Cadillac › 2017 › CT6 Plug-In › Repair and Diagnosis › Electrical › Body Electrical › Hybrid/EV System Controls › Schematic Wiring Diagrams › Hybrid/EV Controls Wiring Schematics › Drive Motor Monitoring
