Battery Negative Strap Replacement

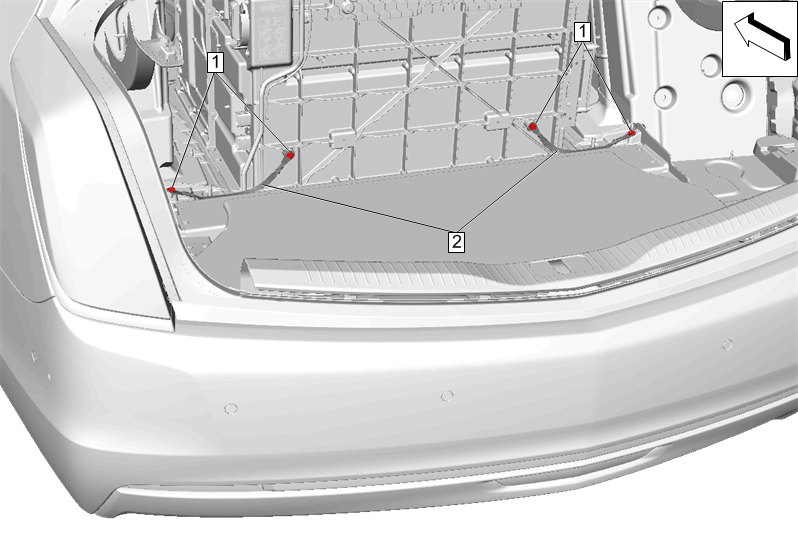

Fig 1: Battery Negative Strap

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Drive Motor Battery Cover Replacement (With HP9)
1	Body Ground Strap Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Battery Negative Strap [2x]
