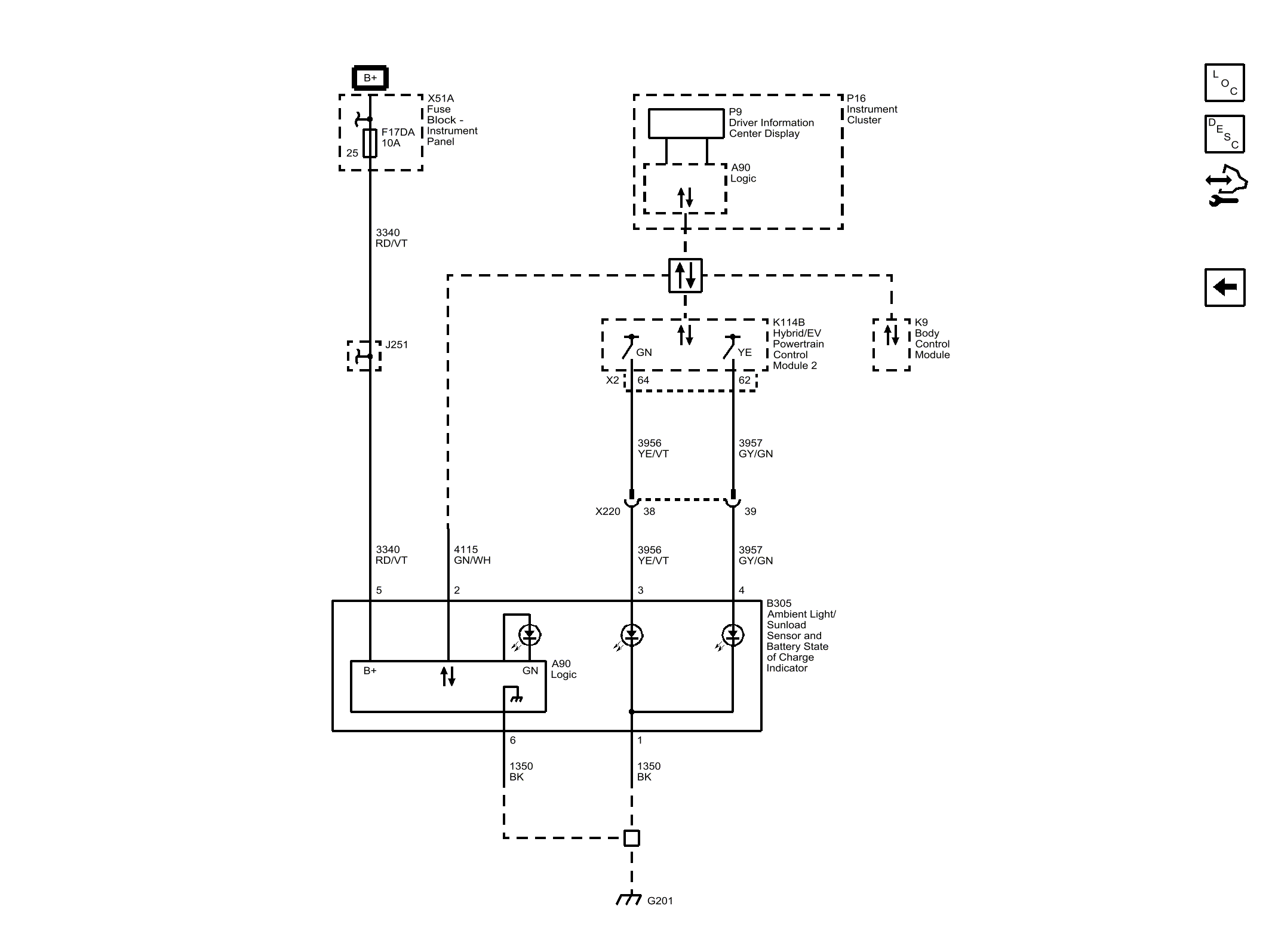

Home › Cadillac › 2017 › CT6 Plug-In › Repair and Diagnosis › Electrical › Body Electrical › Plug-In Charging System › Schematic Wiring Diagrams › Plug-In Charging Wiring Schematics › Battery State of Charge
