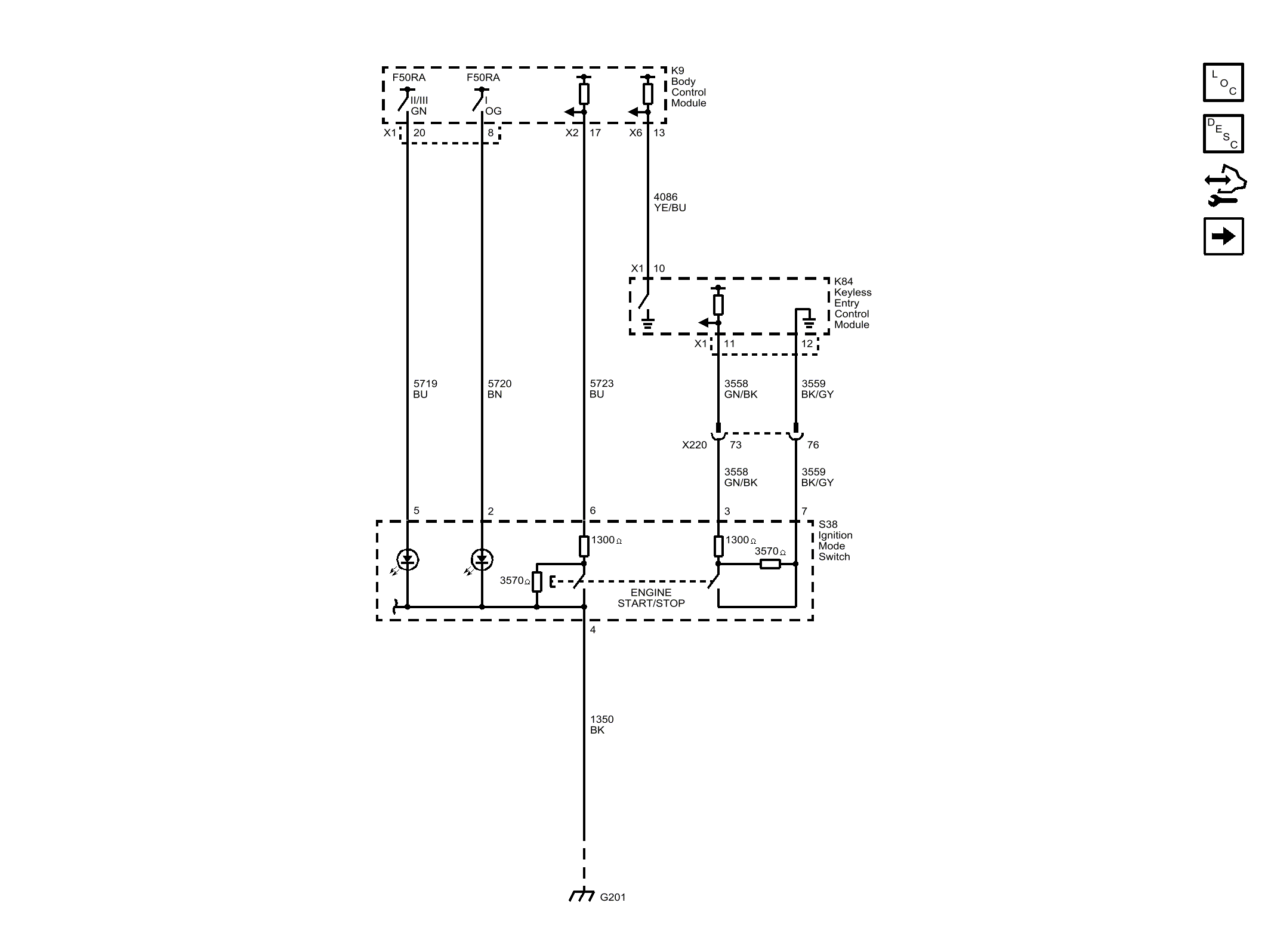

Home › Cadillac › 2017 › CT6 Plug-In › Repair and Diagnosis › Electrical › Body Electrical › Power MODING Schematics › Schematic Wiring Diagrams › Power Moding Wiring Schematics › Ignition Mode Switch
