Engine Compartment Power Inverter Component (HP9)

Engine Compartment Power Inverter Component (HP9)

Items
1. T6 Power Inverter Module (HP9) T6 Power Inverter Module X1 (LTG+HP9)T6 Power Inverter Module X2 (HP9)

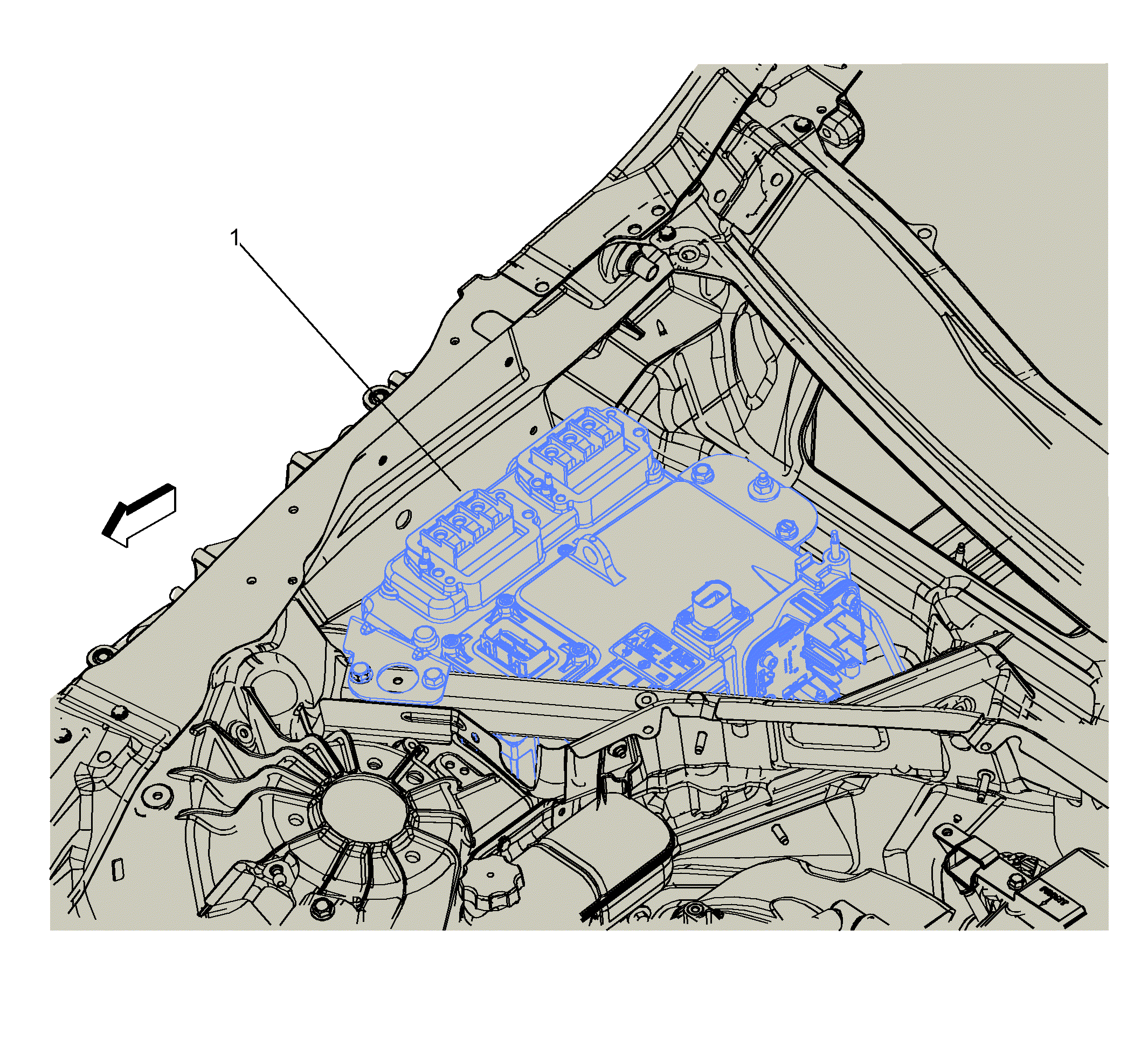

Fig 1: Engine Compartment Power Inverter Component (HP9)
GM4316025Courtesy of GENERAL MOTORS COMPANY
