Engine Components - Top (LGW)

Items
1. Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LGW/LGX) Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LGW/LGX)
2. Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LGW/LGX) Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LGW/LGX)
3. T8A Ignition Coil 1 T8A Ignition Coil 1 (LGW/LGX)T8A Ignition Coil 1 (LTG)
4. T8C Ignition Coil 3 T8C Ignition Coil 3 (LGW/LGX)T8C Ignition Coil 3 (LTG)T8C Ignition Coil 3 (LTG+KL9)
5. T8E Ignition Coil 5 (LGW/LGX) T8E Ignition Coil 5 (LGW/LGX)
6. B23A Camshaft Position Sensor - Bank 1 Exhaust (LGW/LGX) B23A Camshaft Position Sensor - Bank 1 Exhaust (LGW/LGX)
7. B23B Camshaft Position Sensor - Bank 1 Intake (LGW/LGX) B23B Camshaft Position Sensor - Bank 1 Intake (LGW/LGX)
8. B23D Camshaft Position Sensor - Bank 2 Intake (LGW/LGX) B23D Camshaft Position Sensor - Bank 2 Intake (LGW/LGX)
9. B23C Camshaft Position Sensor - Bank 2 Exhaust (LGW/LGX) B23C Camshaft Position Sensor - Bank 2 Exhaust (LGW/LGX)
10. T8F Ignition Coil 6 (LGW/LGX) T8F Ignition Coil 6 (LGW/LGX)
11. T8D Ignition Coil 4 T8D Ignition Coil 4 (LGW/LGX)T8D Ignition Coil 4 (LTG)T8D Ignition Coil 4 (LTG+KL9)
12. T8B Ignition Coil 2 T8B Ignition Coil 2 (LGW/LGX)T8B Ignition Coil 2 (LTG)
13. Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGW/LGX) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGW/LGX)
14. Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGW/LGX) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGW/LGX)

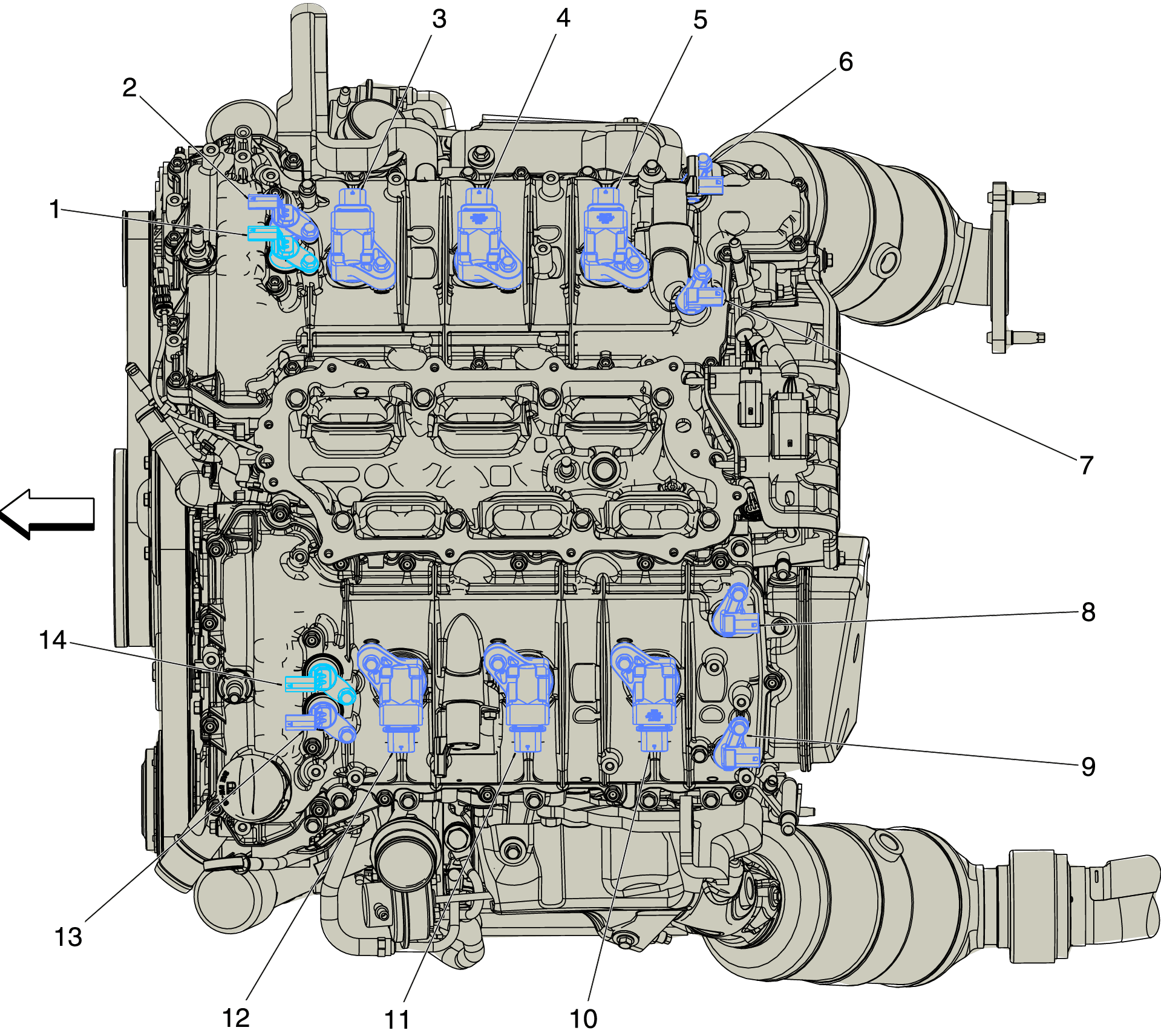

Fig 1: Engine Components - Top (LGW)

Courtesy of GENERAL MOTORS COMPANY
