Installation Procedure

Engine Coolant Fan Shroud (2) @ Radiator Assembly» Install

Fig 1: Engine Coolant Fan Bolt
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Engine Coolant Fan Bolt (1)» Install and tighten [2x] 5.1 N.m (45 lb in)

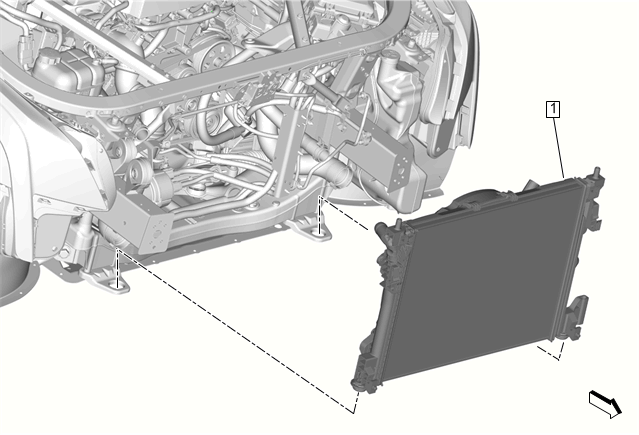

Engine Coolant Fan Module Radiator (1)» Install

Fig 2: Engine Coolant Fan Module Radiator
Courtesy of GENERAL MOTORS COMPANY
Wiring Harnesses @ Engine Coolant Fan Shroud» Install
Electrical Connector @ Engine Coolant Fan Shroud» Connect
Hose Clip (1) @ Engine Coolant Fan Shroud» Install

Fig 3: Hose Clip
Courtesy of GENERAL MOTORS COMPANY
Transmission Fluid Cooler Pipe Clip (1) @ Engine Coolant Fan Shroud» Install [4x] - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LGW)

Fig 4: Transmission Fluid Cooler Pipe Retaining Clip
Courtesy of GENERAL MOTORS COMPANY
Radiator Outlet Hose (2) @ Radiator Assembly» Install - Radiator Outlet Hose Replacement (LGW)

Fig 5: Radiator Outlet Hose
Courtesy of GENERAL MOTORS COMPANY
Radiator Inlet Hose (2) @ Radiator Assembly» Install - Radiator Inlet Hose Replacement (LGW)

Fig 6: Radiator Inlet Hose
Courtesy of GENERAL MOTORS COMPANY

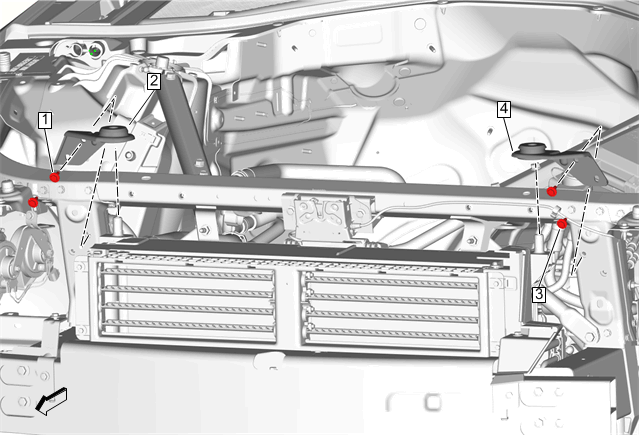

Radiator Upper Bracket (2, 4)» Install - Radiator Upper Bracket Replacement (LGW LGX LTG)

Fig 7: Radiator Upper Bracket
Courtesy of GENERAL MOTORS COMPANY

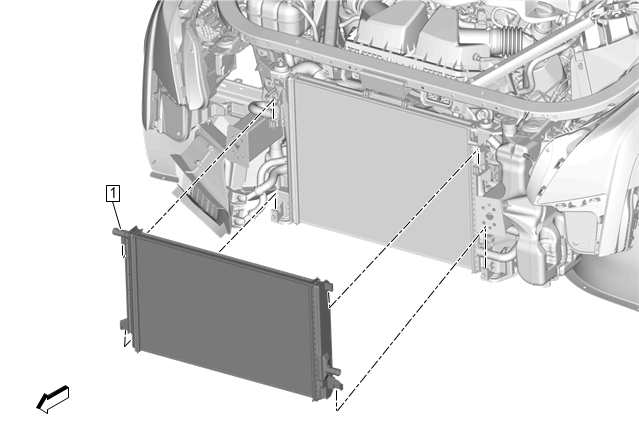

Charge Air Cooler Radiator (1)» Install - Charge Air Cooler Radiator Replacement (LGW)

Fig 8: Charge Air Cooler Radiator
Courtesy of GENERAL MOTORS COMPANY
Fill the cooling system. Refer to Cooling System Draining and Filling (Static without HP9) and/or Cooling System Draining and Filling (GE 47716 without HP9)
Start the engine and check for coolant leaks.
