Accelerator Pedal with Position Sensor Assembly Replacement

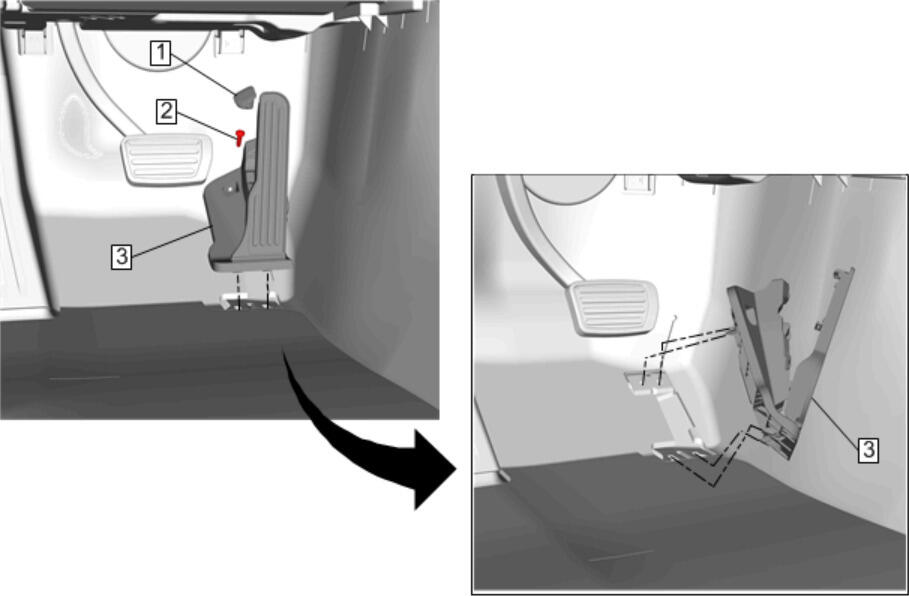

Fig 1: Accelerator Pedal with Position Sensor Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Accelerator Pedal Position Sensor Cover
2	Accelerator Pedal Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Accelerator Pedal Position Sensor Procedure Disconnect the connector from the accelerator pedal position sensor. Tilt the top of the accelerator pedal position sensor rearward. Slide the accelerator pedal position sensor back to disengage its lower retaining tabs.

Callout

Component Name

Accelerator Pedal Position Sensor Cover

Accelerator Pedal Position Sensor Fastener

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Accelerator Pedal Position Sensor

Procedure

Disconnect the connector from the accelerator pedal position sensor.
Tilt the top of the accelerator pedal position sensor rearward.
Slide the accelerator pedal position sensor back to disengage its lower retaining tabs.
