Fuel Level Sensor Replacement (Fuel Tank Fuel Pump Module)

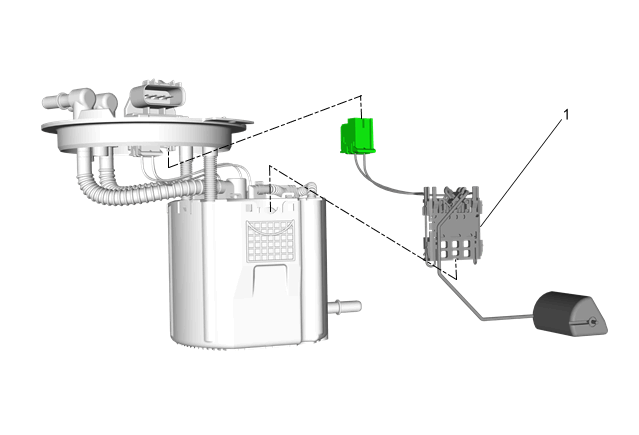

Fig 1: Fuel Level Sensor (Fuel Tank Fuel Pump Module)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Fuel Pump Module Replacement
1	Fuel Level Sensor Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

WARNING: Refer to Gasoline/Gasoline Vapors Warning .

WARNING: Refer to Safety Glasses Warning .

Fuel Level Sensor

Procedure
