Fuel Tank Shield Replacement

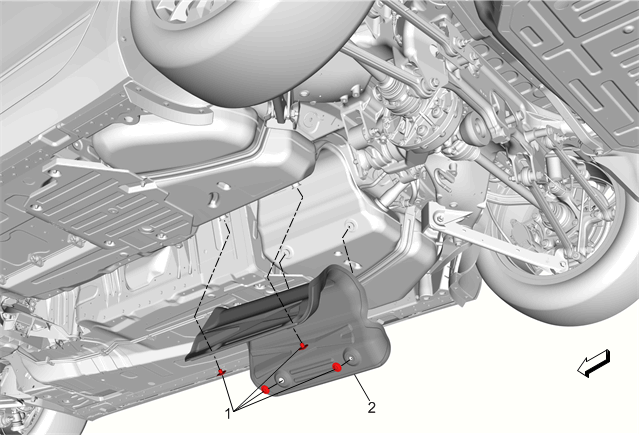

Fig 1: Fuel Tank Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Propeller Shaft Replacement
1	Fuel Tank Shield Retainer [4x] CAUTION: Refer to Fastener Caution .
2	Fuel Tank Shield
