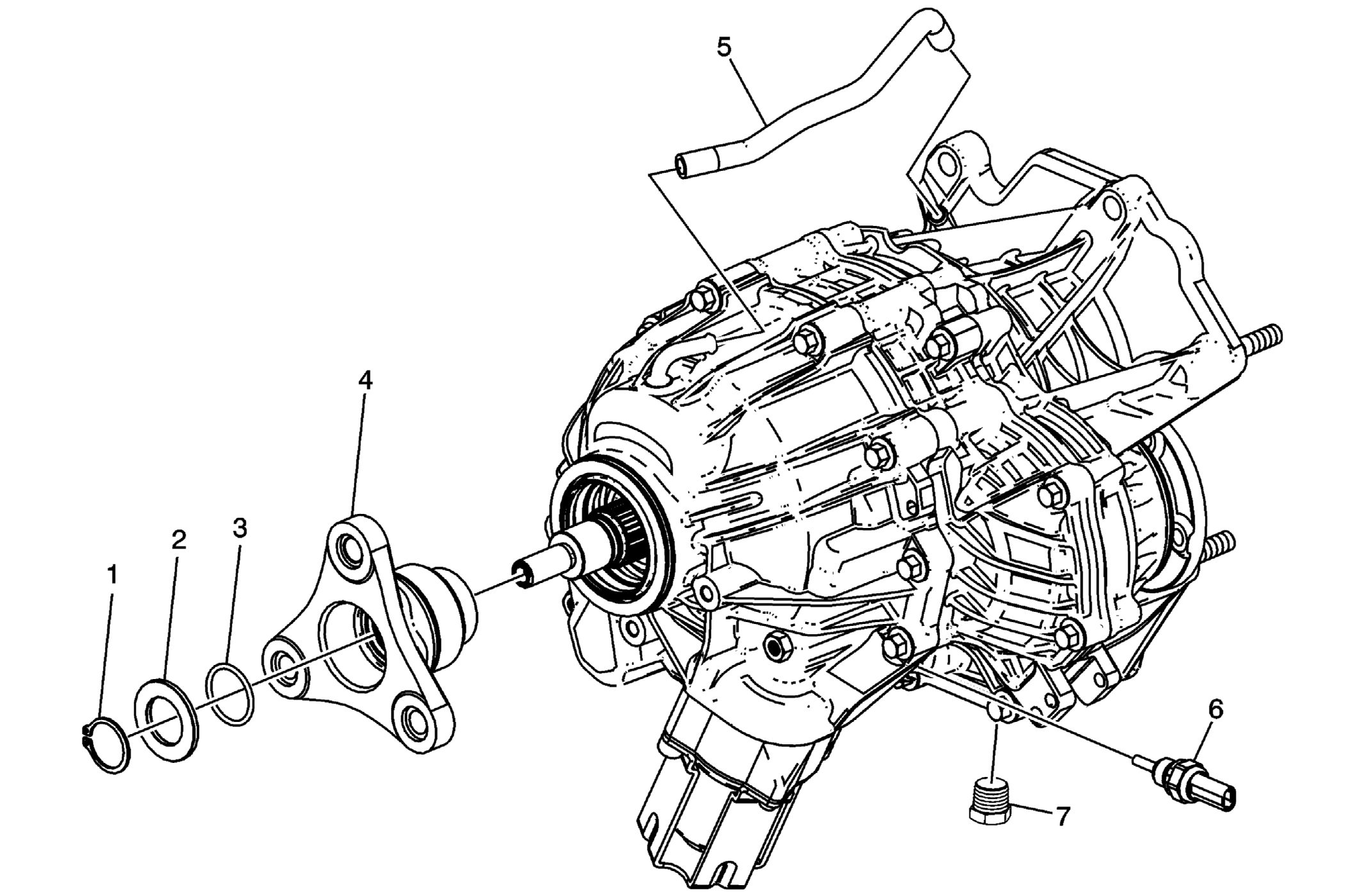

Transfer Case Rear
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Transfer Case Rear Output Shaft Flange Retaining Ring |
| 2 | Transfer Case Rear Output Shaft Flange Washer |
| 3 | Transfer Case Rear Output Shaft Flange O-Ring |
| 4 | Transfer Case Rear Output Shaft Flange |
| 5 | Transfer Case Vent Hose |
| 6 | Transfer Case Fluid Temperature Sensor |
| 7 | Transfer Case Drain Plug |
