Transfer Case Control Module Bracket Replacement
WARNING: This page is about a different variant/trim than selected.

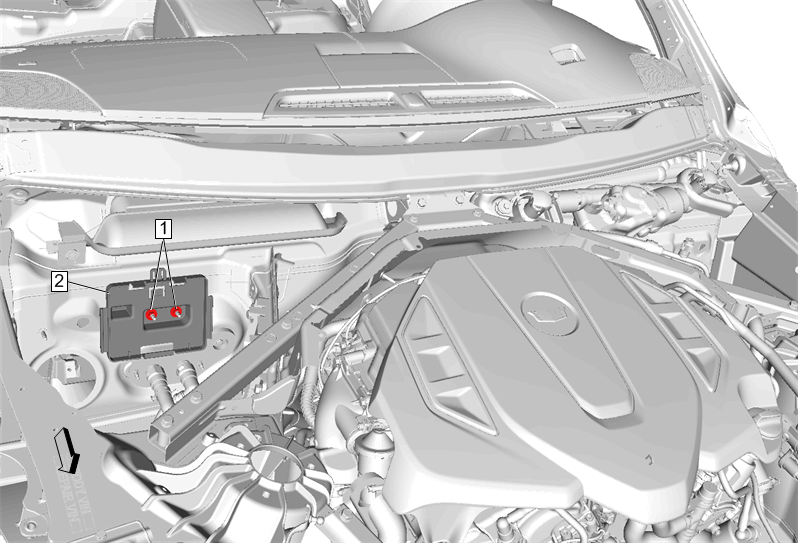

| Callout | Component Name |
|---|---|
| Preliminary Procedure Transfer Case Control Module Replacement |
|
| 1 | Transfer Case Control Module Bracket Fastener [2x]
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
| 2 | Transfer Case Control Module Bracket |
