Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Generator (5)» Install
    Fig 1: Generator Bolt
    GM4251023Courtesy of GENERAL MOTORS COMPANY
  2. Generator Mounting Bolt (1)» Install and tighten [2x] 58 N.m (43 lb ft)
    CAUTION: Refer to Fastener Caution
  3. Generator Mounting Stud (4)» Install and tighten 9 N.m (80 lb in)
  4. Generator Mounting Nut (2)» Install and tighten 58 N.m (43 lb ft)
  5. Wiring Harness Retainer (3)» Engage
  6. Electrical Connector (1)» Connect
    Fig 2: Electrical Connector
    GM4251037Courtesy of GENERAL MOTORS COMPANY
  7. Generator Battery Jumper Cable (2)» Install
    Fig 3: Generator Battery Jumper Cable
    GM4250059Courtesy of GENERAL MOTORS COMPANY
  8. Generator Nut (1)» Install and tighten 15 N.m (11 lb ft)
  9. Engine Front Splash Shield - Right Side (3)» Install - Engine Front Splash Shield Replacement - Right Side (Rear)Engine Front Splash Shield Replacement - Right Side (Front)

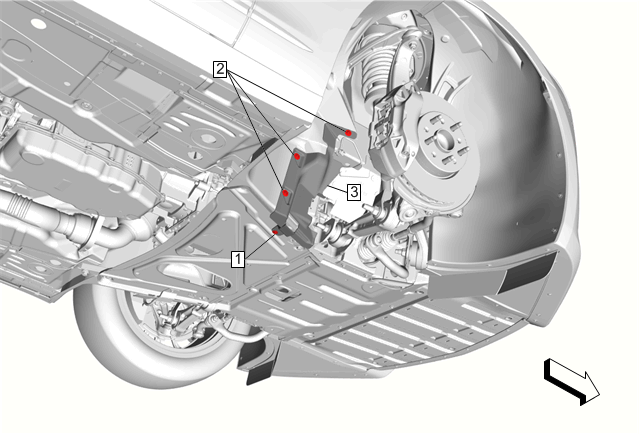

    Fig 4: Front Splash Shield
    GM4244170Courtesy of GENERAL MOTORS COMPANY
  10. Fan and Generator Belt (1)» Install - Fan and Generator Belt Replacement
    Fig 5: Fan and Generator Belt
    GM4251019Courtesy of GENERAL MOTORS COMPANY
  11. Heater Coolant Pump (1)» Install - Heater Coolant Pump Replacement (LGW)
    Fig 6: Heater Coolant Pump
    GM4251021Courtesy of GENERAL MOTORS COMPANY
  12. Radiator Inlet Hose (2)» Install - Radiator Inlet Hose Replacement (LGW)
    Fig 7: Radiator Inlet Hose
    GM4250149Courtesy of GENERAL MOTORS COMPANY
  13. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
