Mode Control Cam Alignment

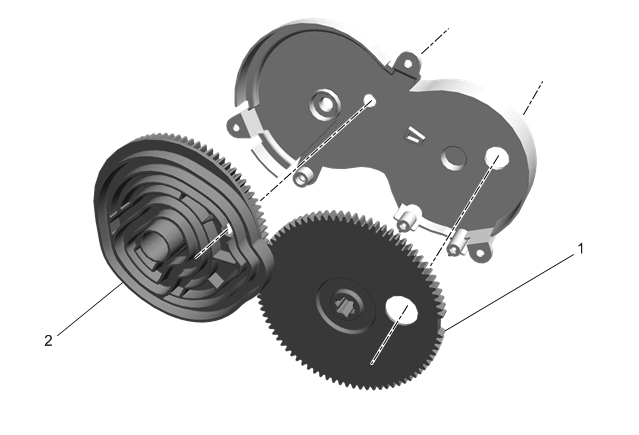

Fig 1: Mode Control Cam

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Mode Valve Actuator Gear Procedure Index the mode valve actuator gear window with the heater and air conditioning mode control cam cover window.
2	Mode Valve Cam Procedure Index the mode valve cam window with the heater and air conditioning mode control cam cover window.
