Generator Control Module Coolant Pump Bracket Replacement (At Heater Coolant Pump)

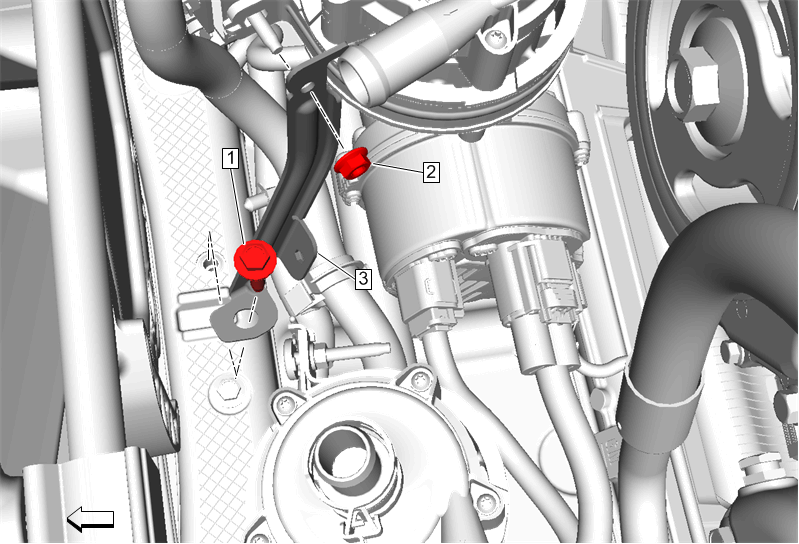

Fig 1: Generator Control Module Coolant Pump Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Air Cleaner Assembly Replacement
1	Generator Control Module Coolant Pump Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Generator Control Module Coolant Pump Bracket Nut Tighten  9 N.m (80 lb in)
3	Generator Control Module Coolant Pump Bracket Preliminary Procedure  Engine Wiring Harness Retainer @ Generator Control Module Coolant Pump Bracket» Remove
