Removal Procedure

Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
Front Wheelhouse Liner (1)» Remove - Front Wheelhouse Liner Replacement

Fig 1: Front Wheelhouse Liner
Courtesy of GENERAL MOTORS COMPANY
Front Wheel Drive Shaft (1) @ Front Wheel Bearing and Hub Assembly» Separate - Front Wheel Drive Shaft Replacement - Left Side or Front Wheel Drive Shaft Replacement - Right Side

Fig 2: Front Wheel Drive Shaft
Courtesy of GENERAL MOTORS COMPANY
Steering Knuckle Nut (1)» Remove

Fig 3: Steering Knuckle Nut
Courtesy of GENERAL MOTORS COMPANY

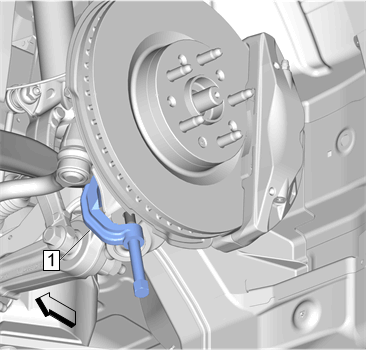

Use the CH-43631 separator (1) to separate the front lower control front link from the steering knuckle.

Fig 4: CH-43631 Separator
Courtesy of GENERAL MOTORS COMPANY
Front Lower Control Front Link Nut (1)» Remove

Fig 5: Front Lower Control Front Link Bolt
Courtesy of GENERAL MOTORS COMPANY
Front Lower Control Front Link Bolt (2)» Remove
DISCARD the bolt.
Remove the front lower control front link (1) from the vehicle.

Fig 6: Front Lower Control Front Link
Courtesy of GENERAL MOTORS COMPANY
