Front View Camera Replacement (With UQT)

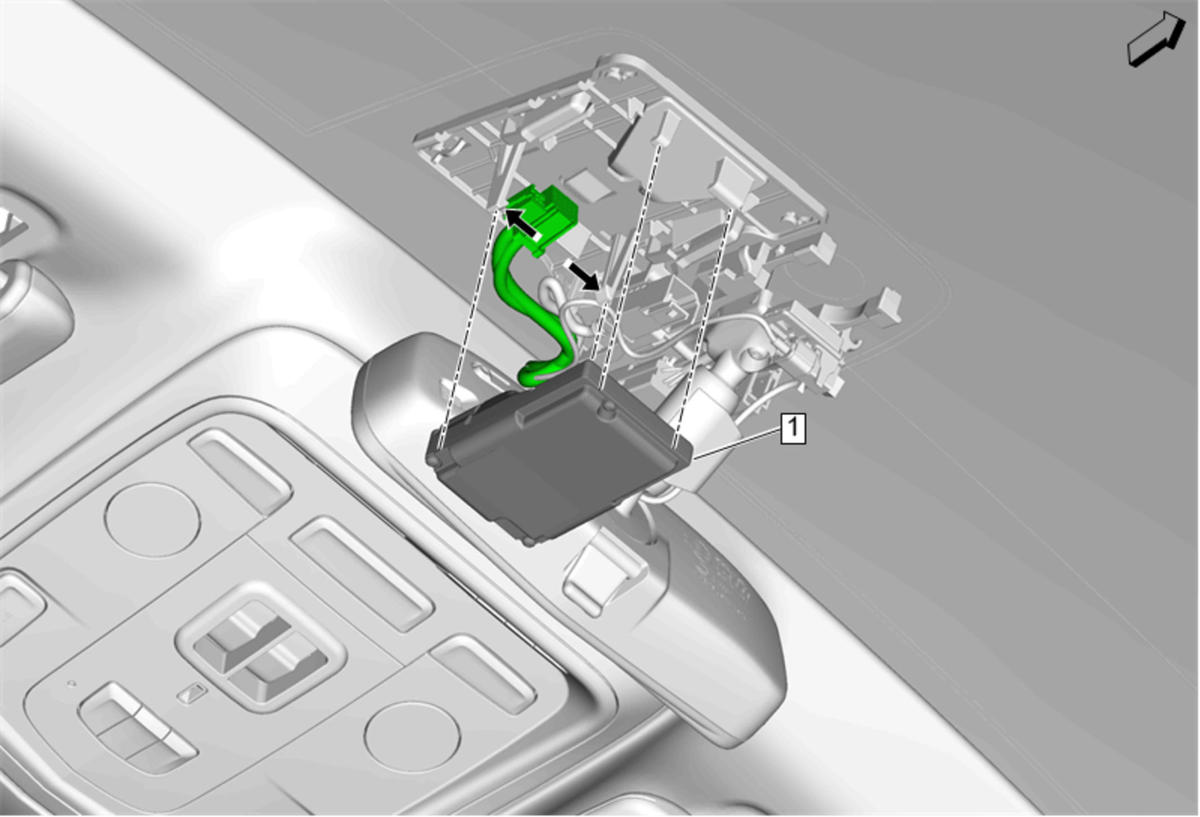

Fig 1: Front View Camera (With UQT)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Vehicle Performance Camera Bracket Replacement
1	Front View Camera Procedure Release the retaining tabs. Disconnect the electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Front View Camera

Procedure
