Front View Driver Information Camera Replacement (CTS-V)

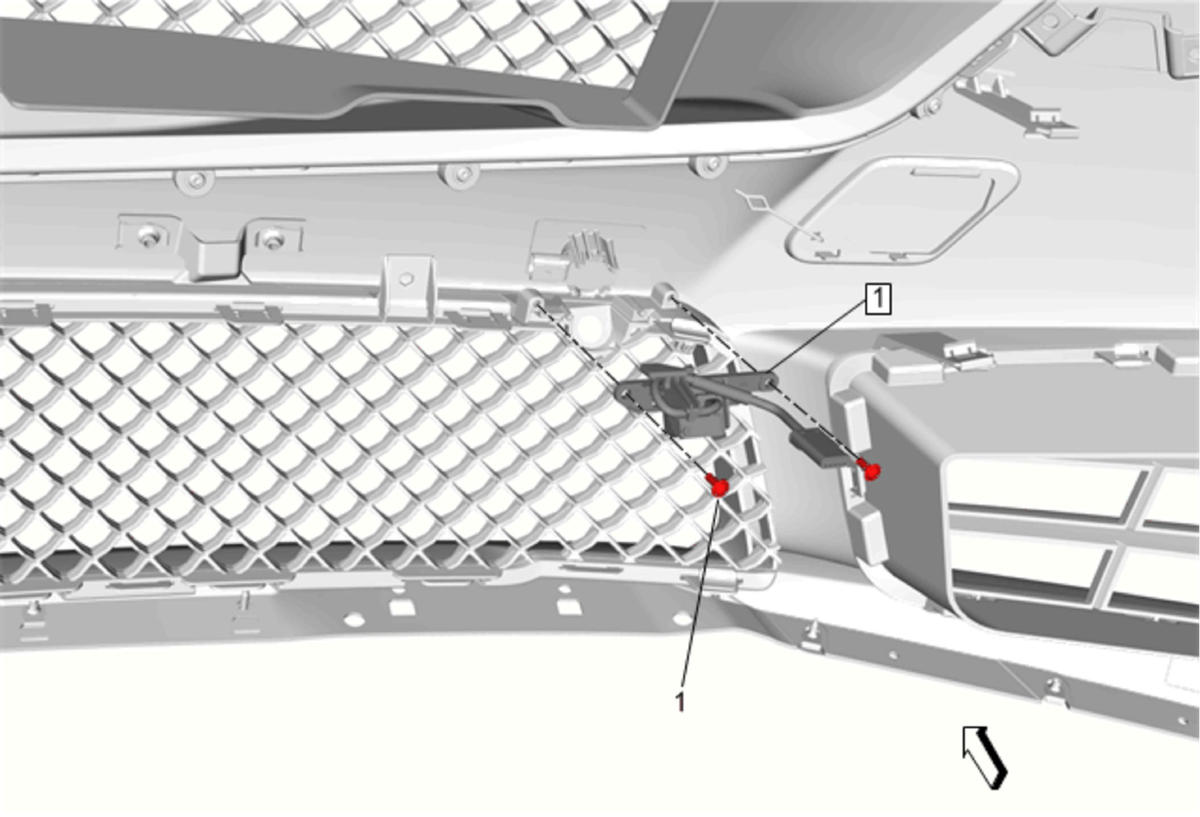

Fig 1: Front View Driver Information Camera (CTS-V)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Replacement (CTS-V)
1	Front View Driver Information Camera Retainer (Qty: 2) CAUTION: Fastener Caution . Tighten  1 N.m (9 lb in)
2	Front View Driver Information Camera Procedure  Disconnect the electrical connector.
