Front View Driver Information Camera Replacement

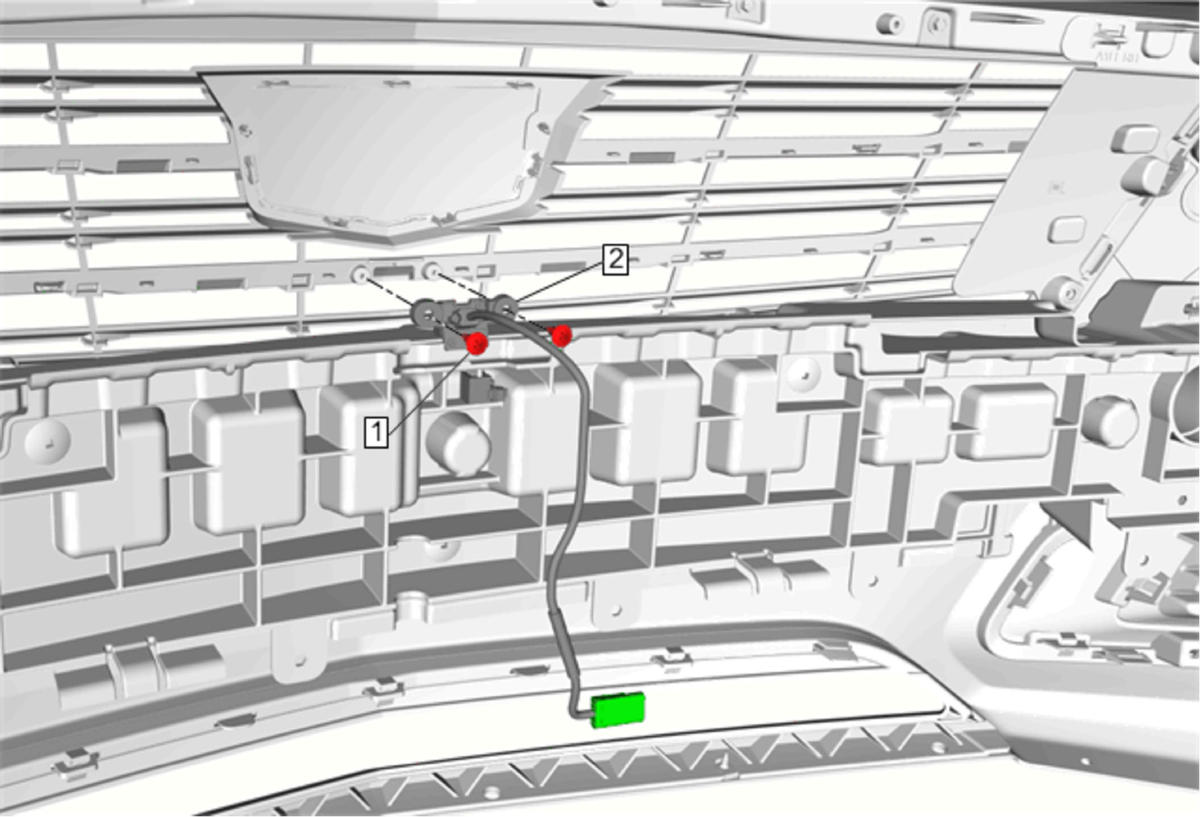

Fig 1: Front View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Replacement (CTS)
1	Front Grille Bolt (Qty: 2) CAUTION: Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front View Driver Information Camera Procedure  Disconnect the electrical connector.
