Collision Avoidance - Modules Power, Ground and Controls (UGN)

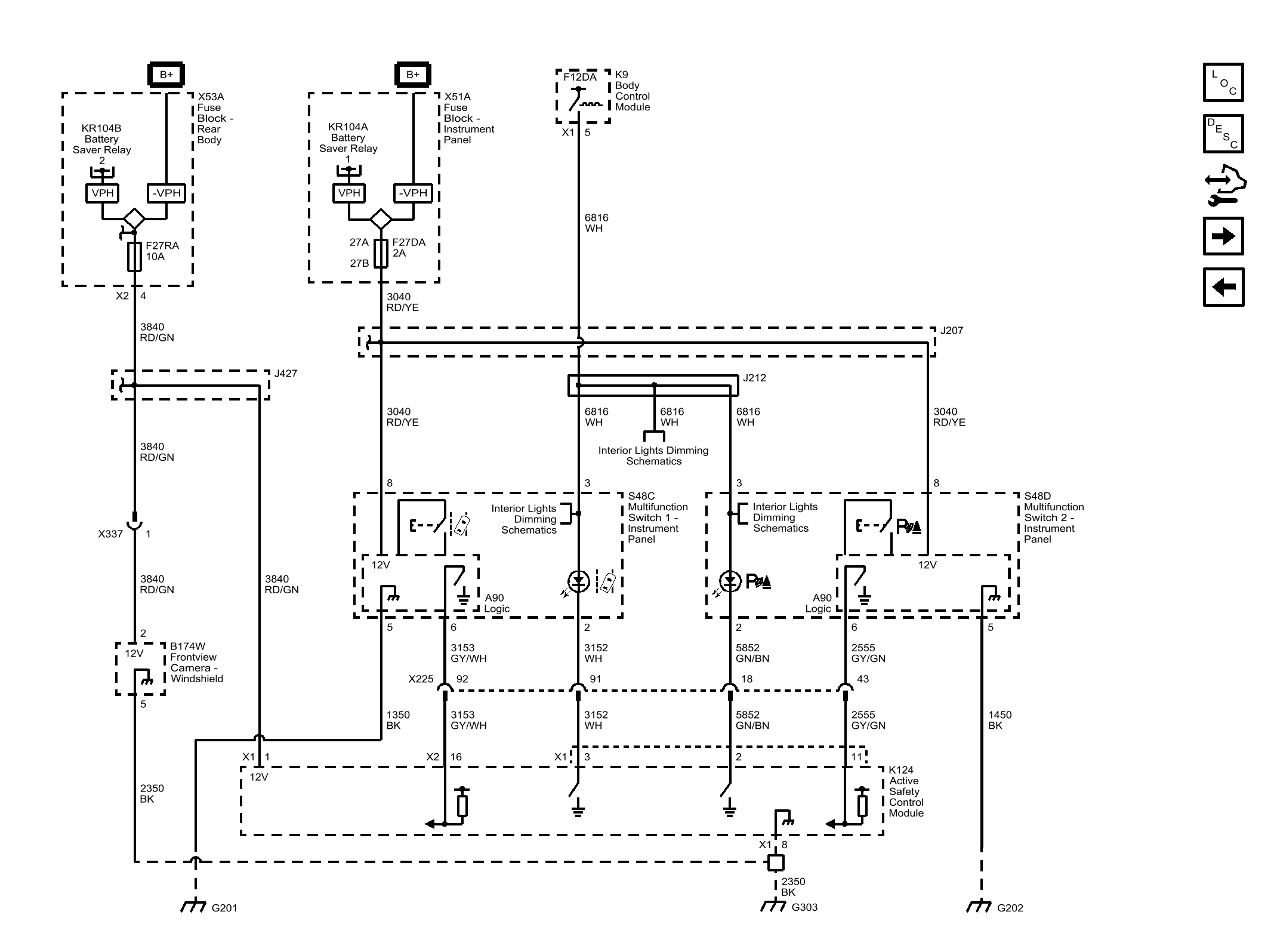

Fig 1: Collision Avoidance - Modules Power, Ground and Controls (UGN)
GM4493555Courtesy of GENERAL MOTORS COMPANY
