Cadillac
›
2017
›
CTS Base, AWD
›
Repair and Diagnosis
›
Accessories & Equipment
›
Drivers Assistance Systems - ADAS
›
Object Detection System And Pedestrian Protection System
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics
›
Pedestrian Impact Detection System (B3T)
Pedestrian Impact Detection System (B3T)

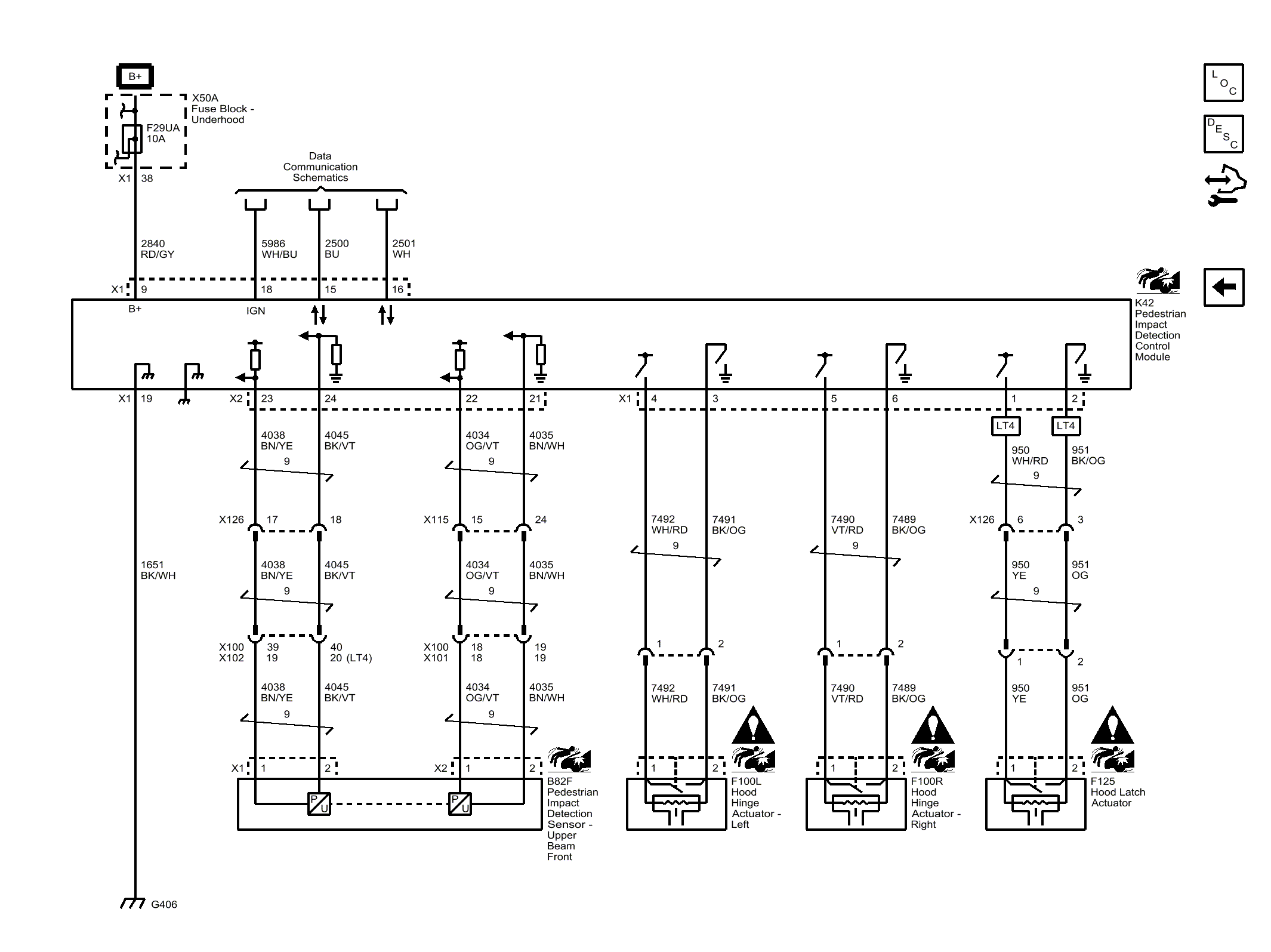

Fig 1: Pedestrian Impact Detection System (B3T)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
