Keyless Entry - Passive, and Keyless Start

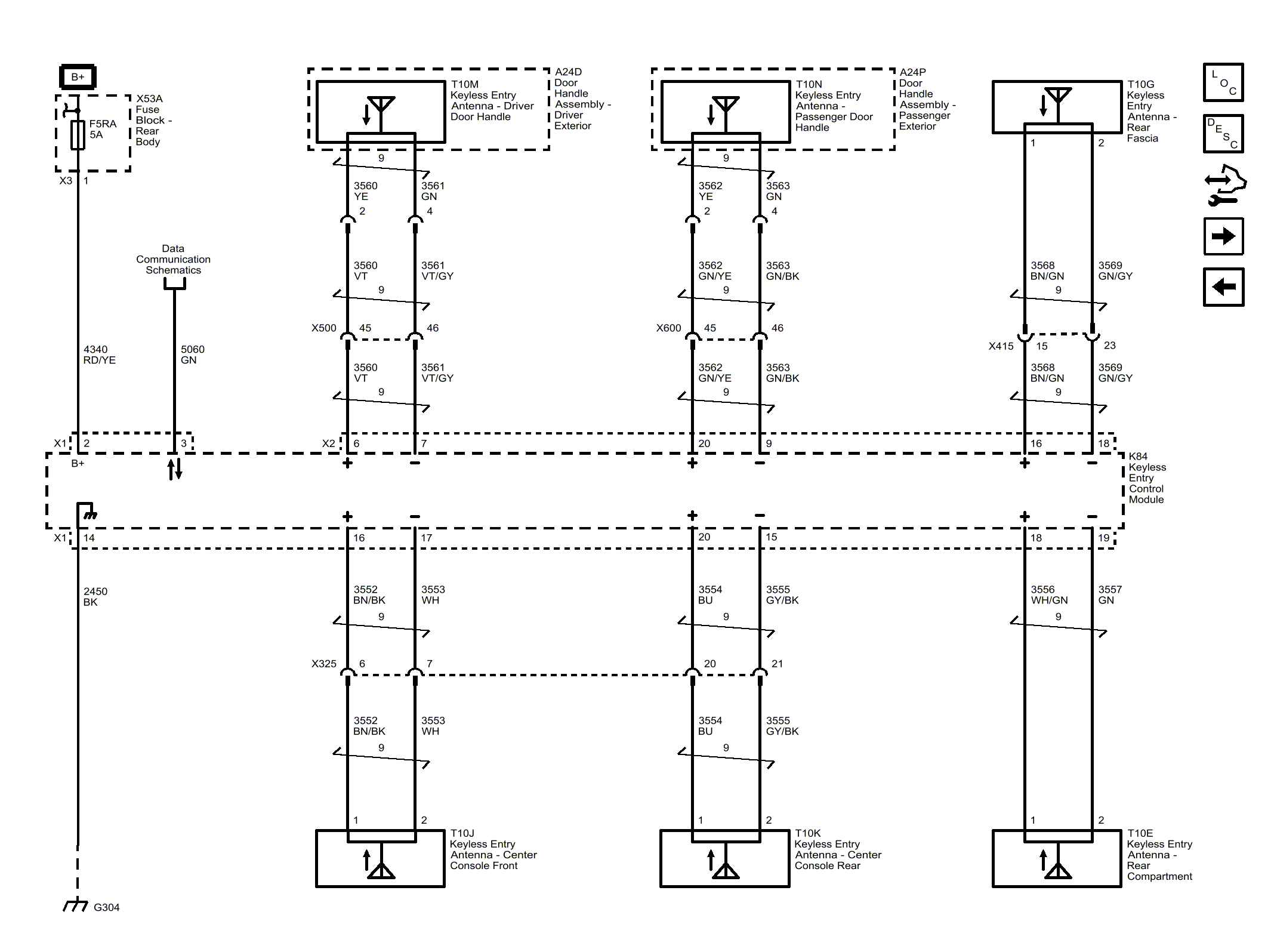

Fig 1: Keyless Entry - Passive, and Keyless Start
GM4493573Courtesy of GENERAL MOTORS COMPANY
