Battery Negative Cable Extension Cable Replacement (LF3)

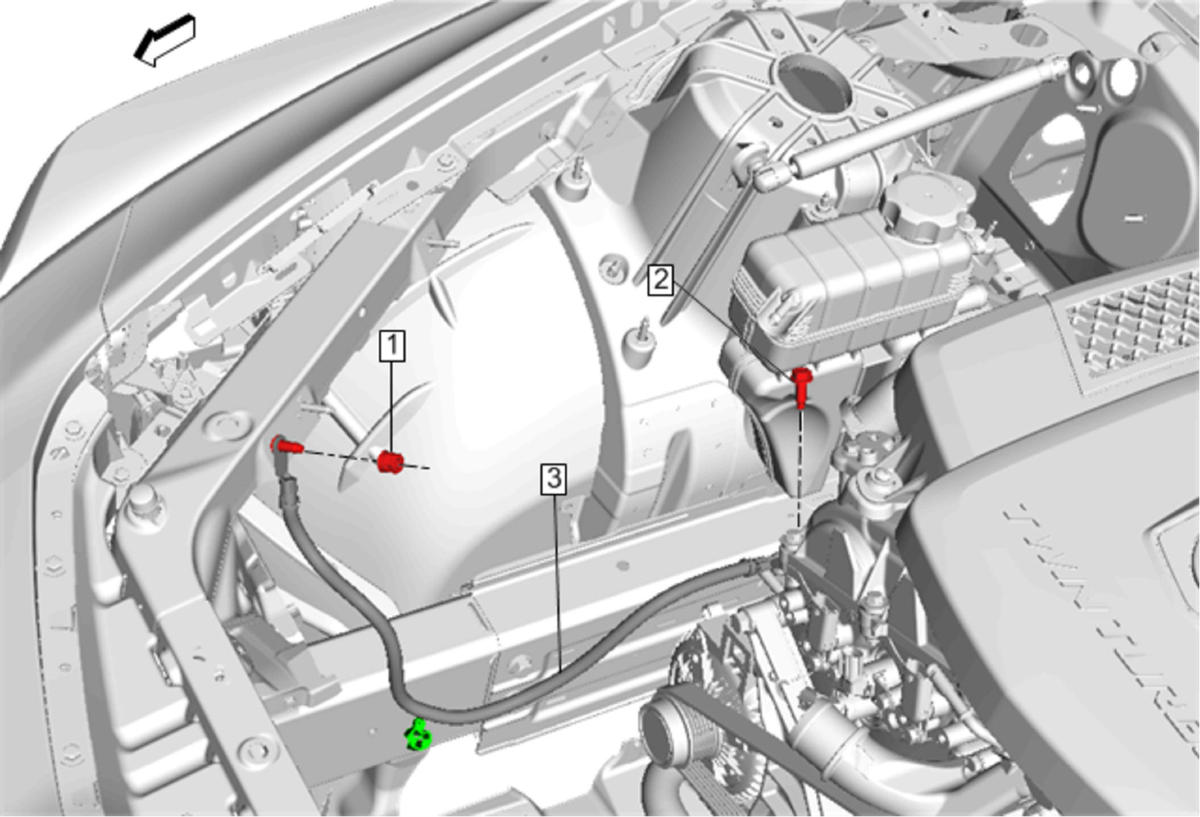

Fig 1: Battery Negative Cable Extension Cable (LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Battery Negative Cable Extension Cable Fastener CAUTION: Refer to Fastener Caution . Tighten  15 N.m (11 lb ft)
2	Engine Block Ground Bolt Tighten  22 N.m (16 lb ft)
3	Battery Negative Cable Extension Cable
