Installation Procedure

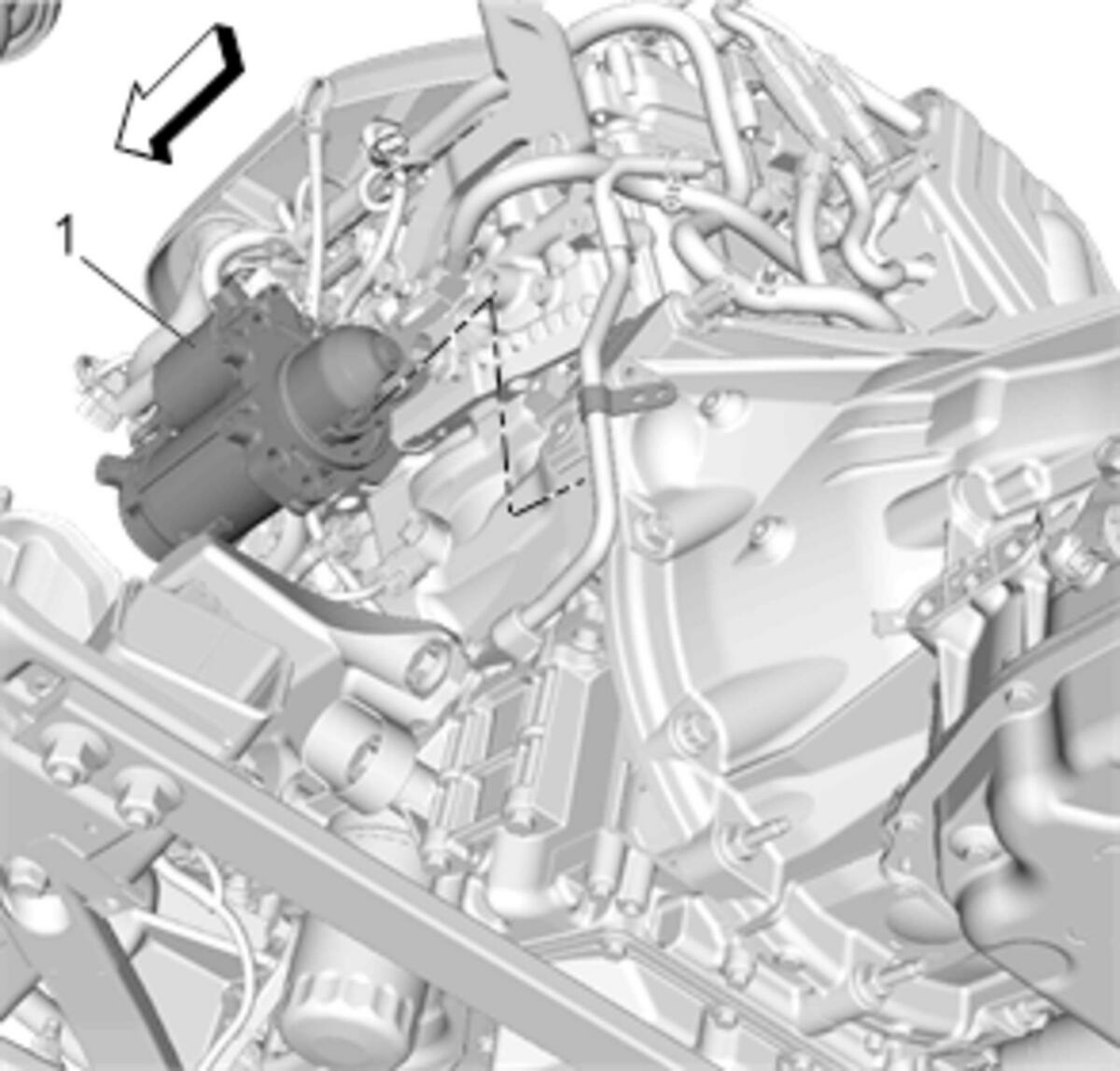

    Fig 1: Starter
    GM4082039Courtesy of GENERAL MOTORS COMPANY
  1. Connect the electrical connector and install the starter (1)

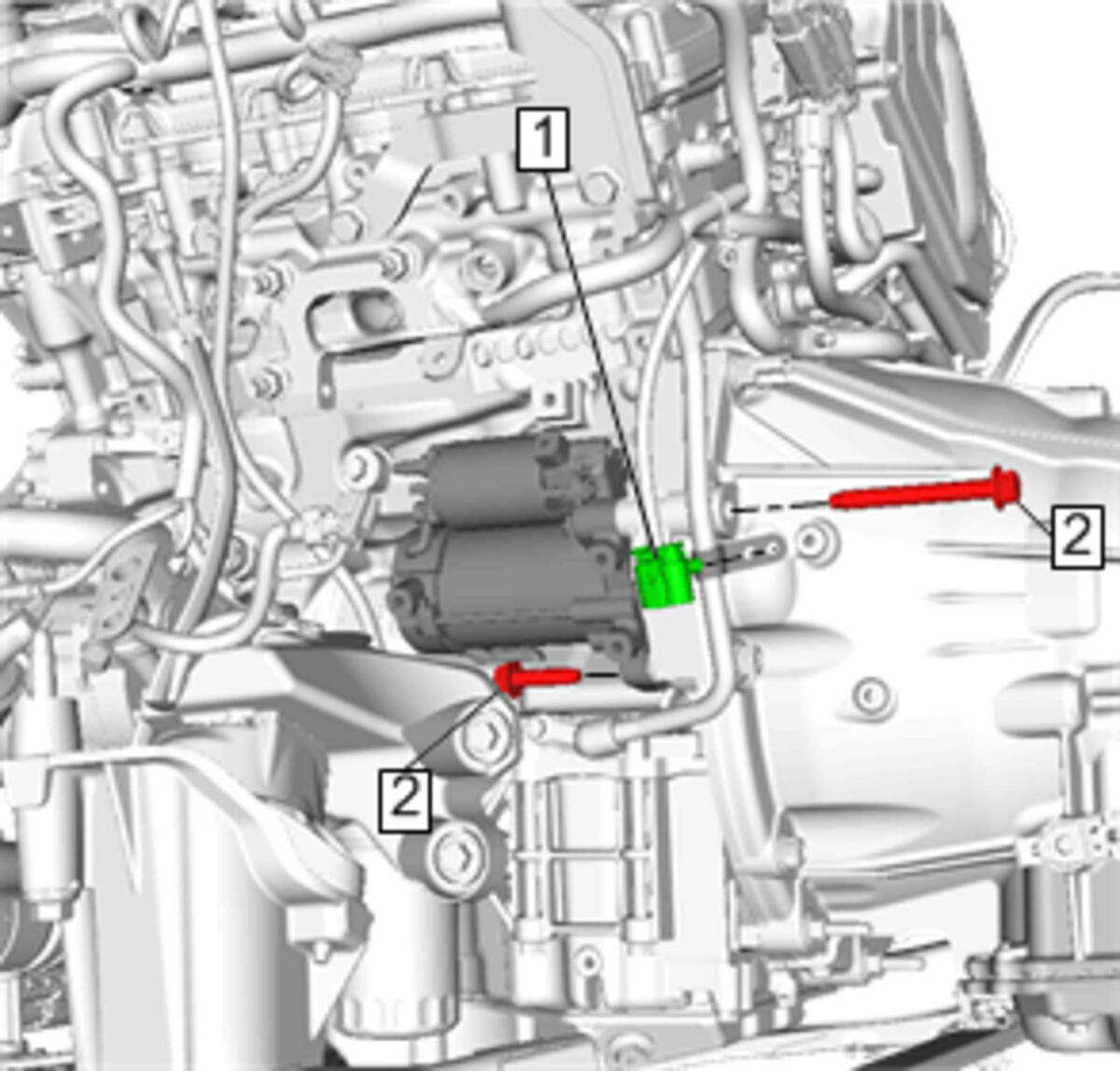

    2. Fig 2: Heated Oxygen Sensor Electrical Connector
    GM4082035Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Tighten Install the starter mounting bolts (2) 58 N.m (43 lb ft)
  3. Reposition Heated Oxygen Sensor Electrical Connector (1)

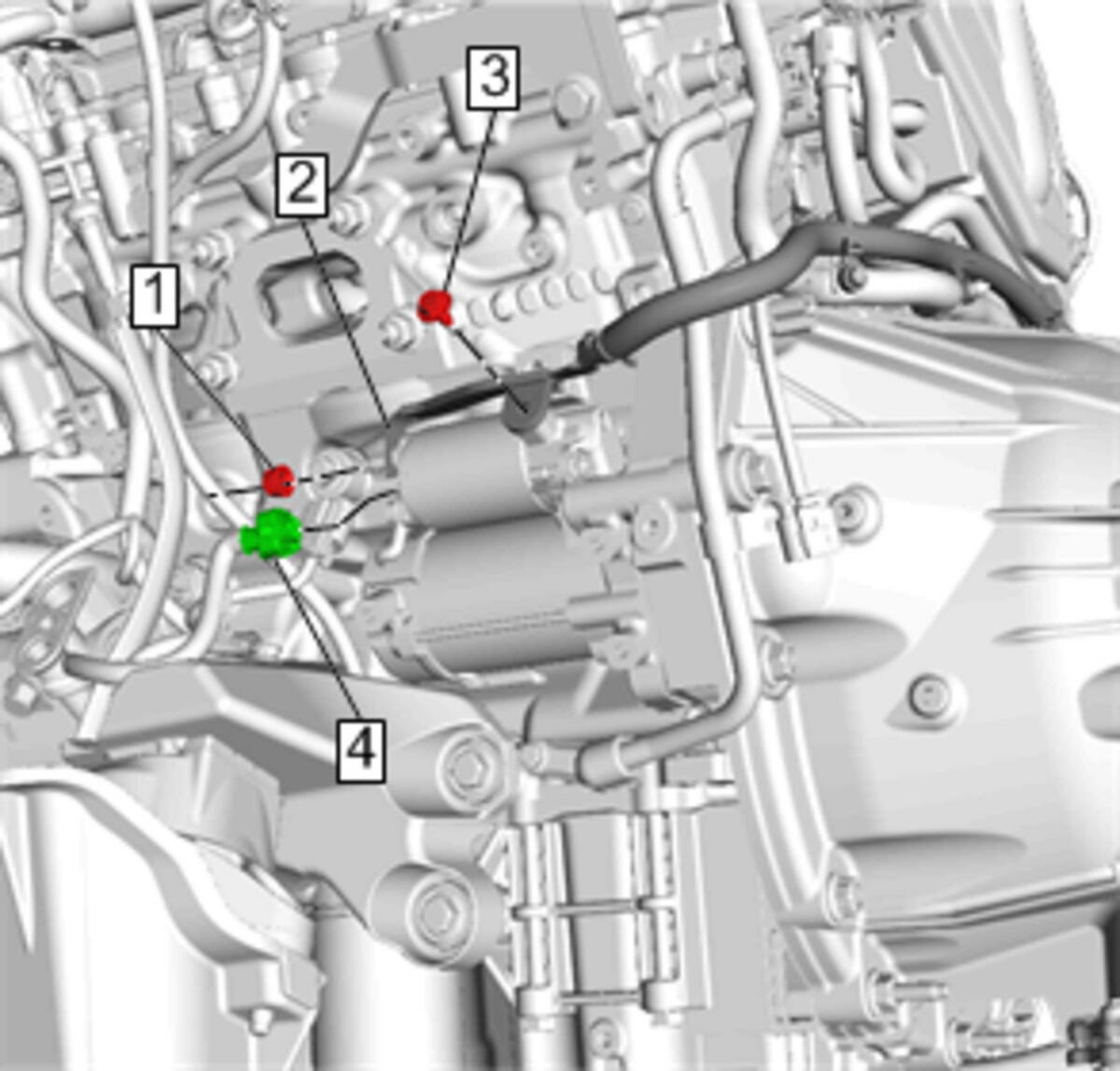

    4. Fig 3: Starter Solenoid Cable
    GM4082033Courtesy of GENERAL MOTORS COMPANY
  4. Install Battery Positive Cable (2)
  5. Tighten Starter Solenoid Cable Nut (1) 12.5 N.m (111 lb in)
  6. Tighten Battery Positive Cable Retainer Fastener (3) 6 N.m (53 lb in)

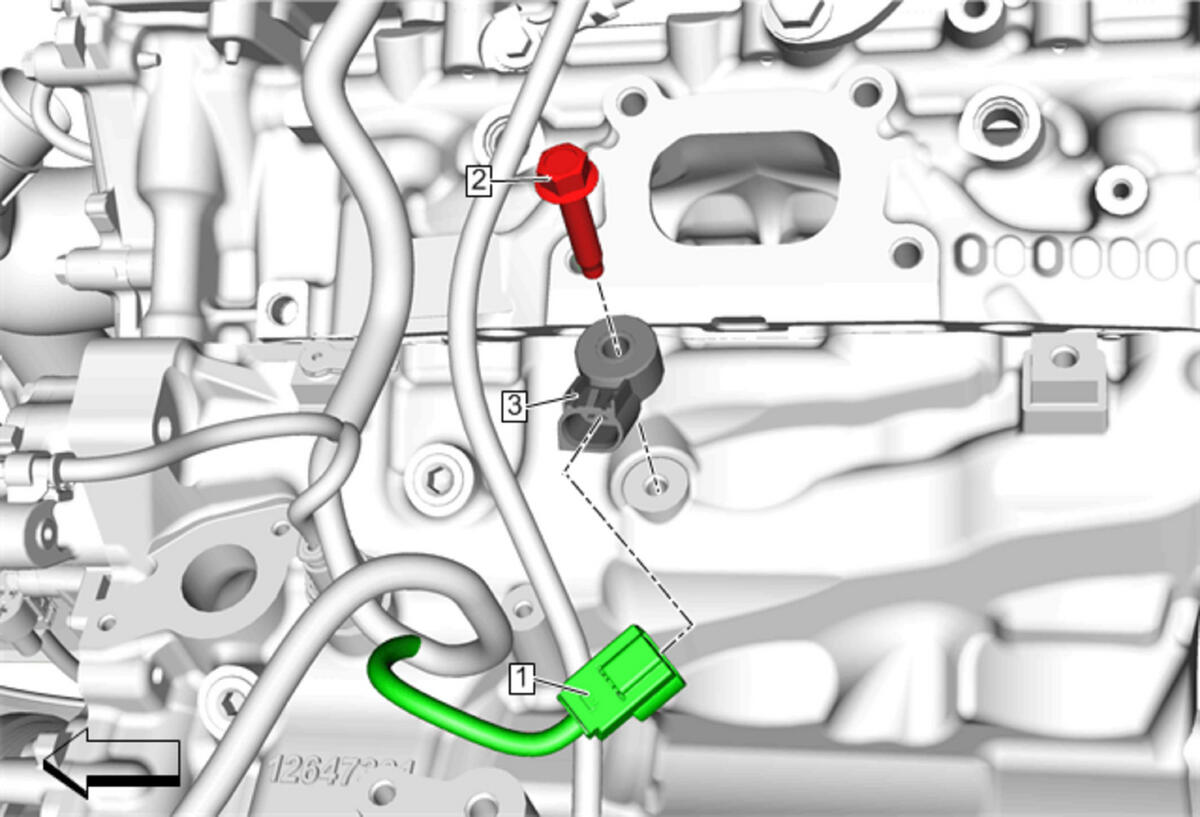

    7. Fig 4: Knock Sensor-Bank 2
    GM4147023Courtesy of GENERAL MOTORS COMPANY
  7. Install Knock Sensor-Bank 2 (3) - Knock Sensor Replacement - Bank 2 (LGX)

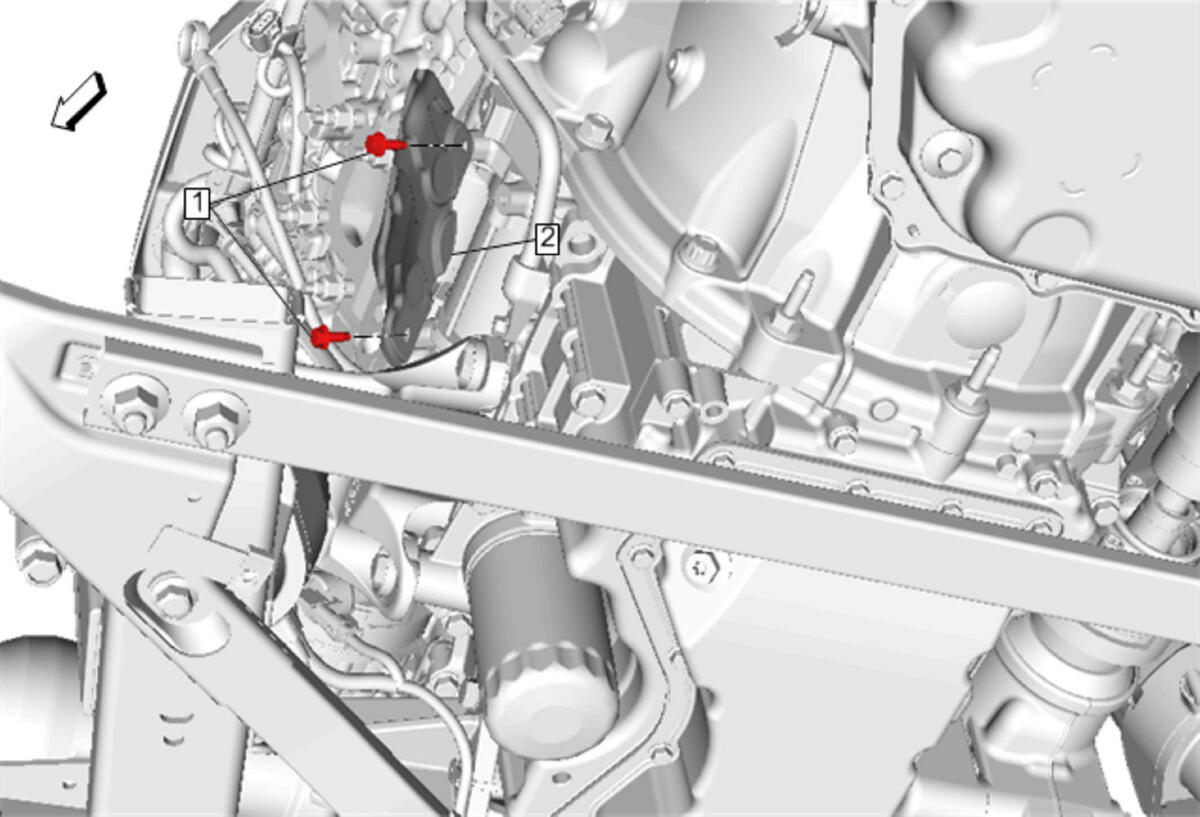

    8. Fig 5: Starter Shield (LGX)
    GM4083933Courtesy of GENERAL MOTORS COMPANY
  8. Install Starter Heat Shield (2) - Starter Shield Replacement (LGX)
  9. Lower the vehicle.
  10. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9) .
